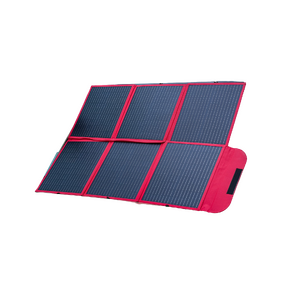

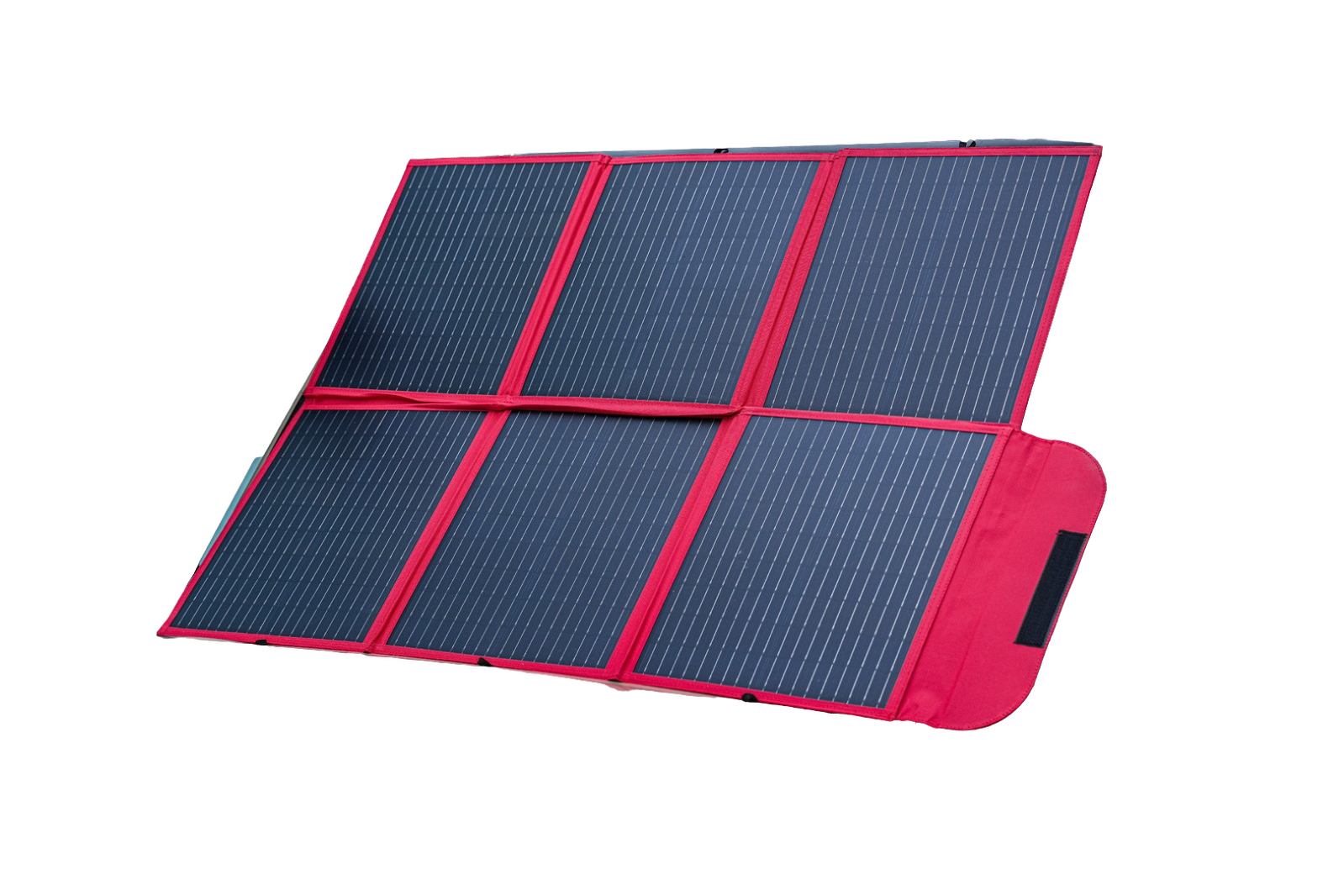

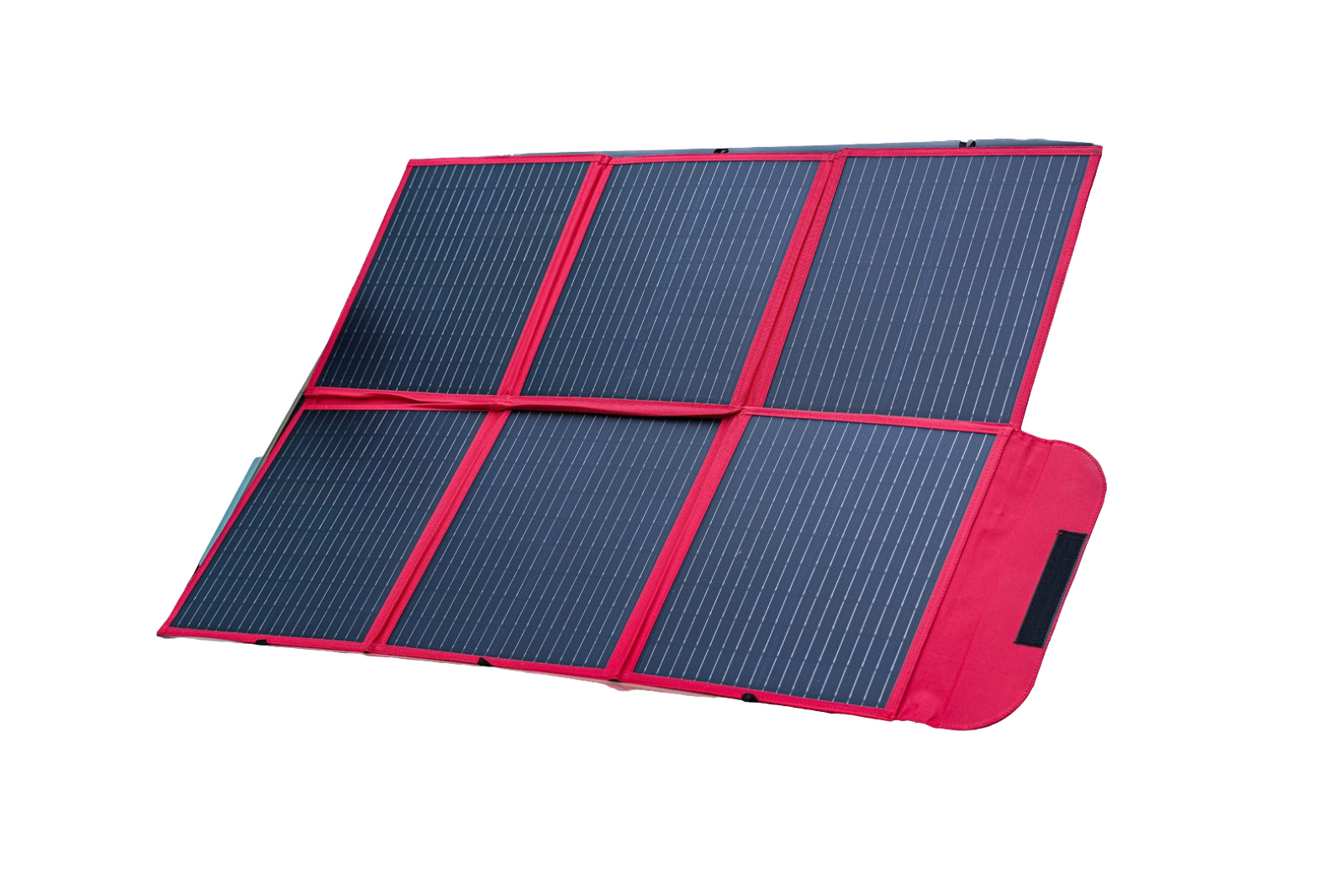

12 Volt Direct 200W Portable Solar Blanket

DETAILS

WHY CHOOSE A SOLAR BLANKET

12 Volt Direct's portable solar blankets are lightweight, compact and versatile making the ultimate portable power solution.

Our blankets are built tough to handle harsh Australian conditions and are designed for a quick and painless setup. Simply unclip the straps, unfold and place in the sun!

The included charge controller ensures that your battery is charged with maximum efficiency and charging will automatically stop when the battery is full.

Solar blankets are the ideal solution to maintain your battery when using 12v lighting, 12v fridges, tv’s, and other camping equipment.

WHY CHOOSE A SOLAR BLANKET

12 Volt Direct's portable solar blankets are lightweight, compact and versatile making the ultimate portable power solution.

Our blankets are built tough to handle harsh Australian conditions and are designed for a quick and painless setup. Simply unclip the straps, unfold and place in the sun!

The included charge controller ensures that your battery is charged with maximum efficiency and charging will automatically stop when the battery is full.

Solar blankets are the ideal solution to maintain your battery when using 12v lighting, 12v fridges, tv’s, and other camping equipment.

CHARGING SETUP

Our solar blankets are supplied with a PWM solar regulator, this regulates the solar energy collected by the panel to the optimal voltage for charging your battery and prevents the battery from being overcharged.

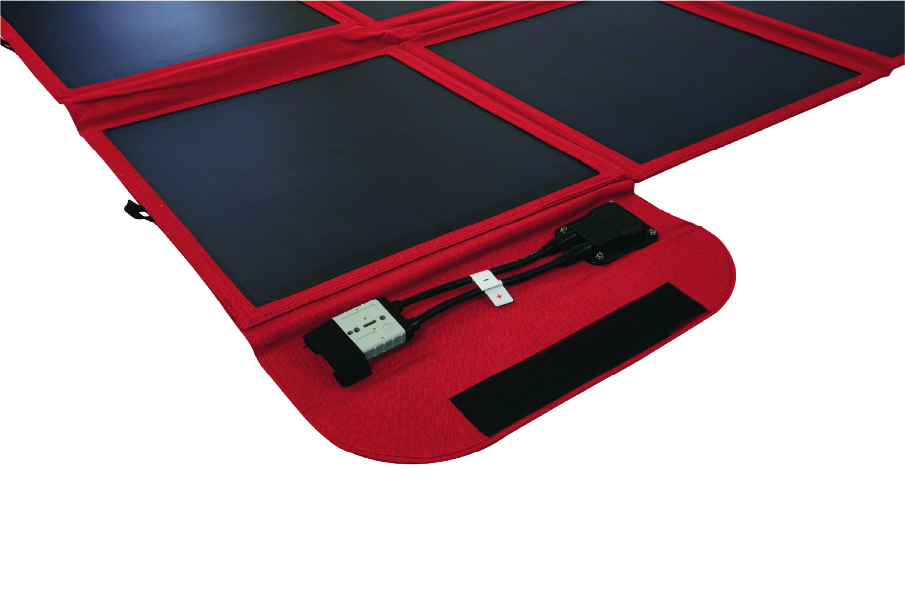

The solar panel, regulator, and accessories are fitted with Anderson style plugs to provide a plug & play solution. This also allows the regulator to easily be bypassed if you choose to use the solar blanket with an existing charge controller, DC to DC charger, or battery management system. Anderson style connectors add to the versatility and adaptability of your setup so you won’t have to source any proprietary Or uncommon plugs in the future.

OUR DESIGN

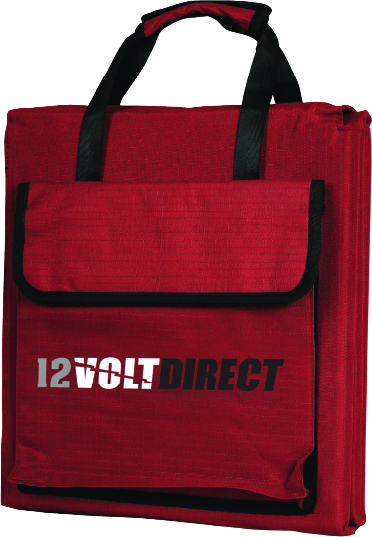

Our ultra-compact design allows the panels to be folded to a small size for easy storage while traveling.

Weighing in at only 7kgs, the panel is super lightweight so you don’t have to worry about lugging around a heavy and bulky panel.

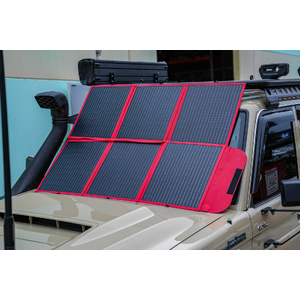

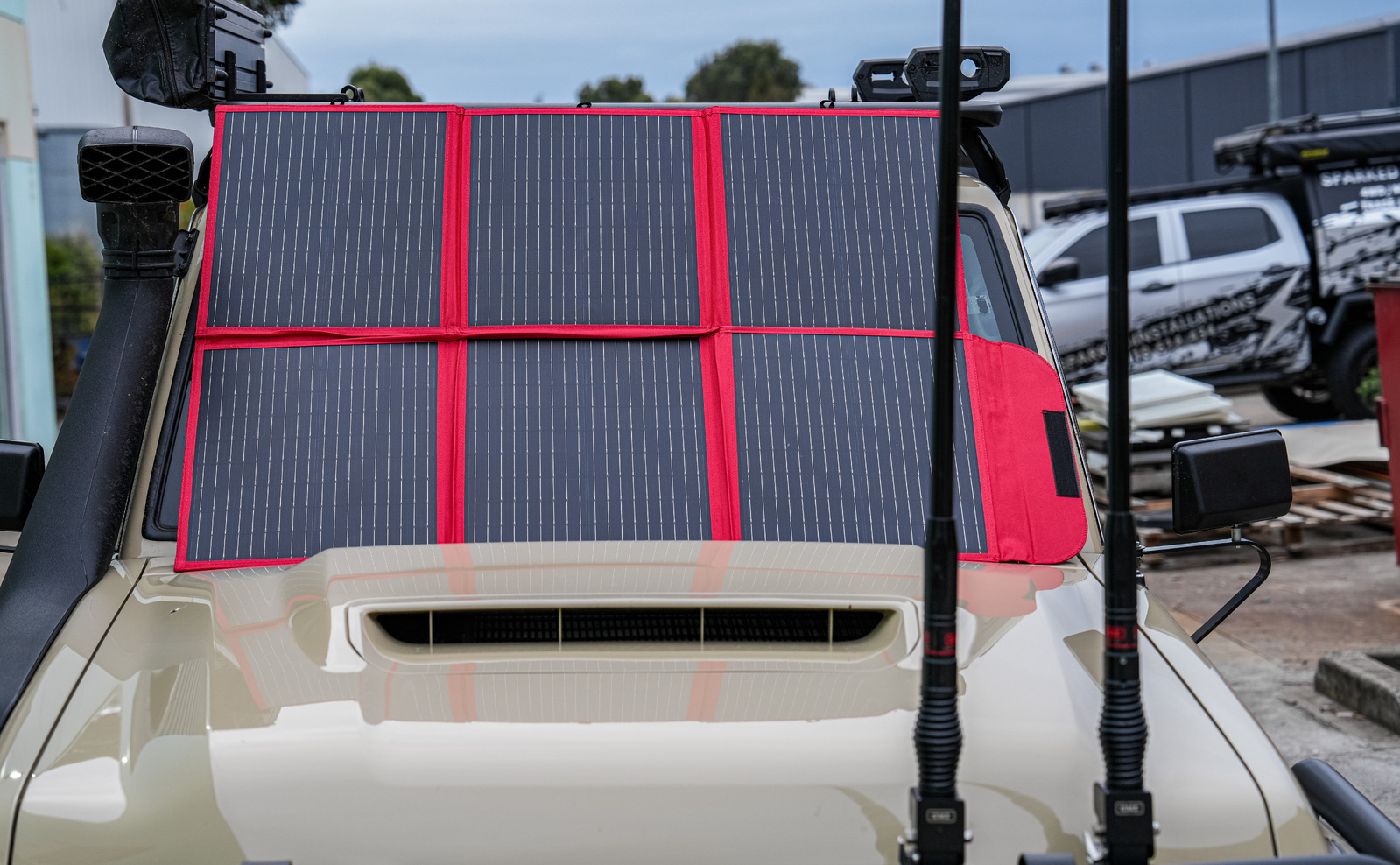

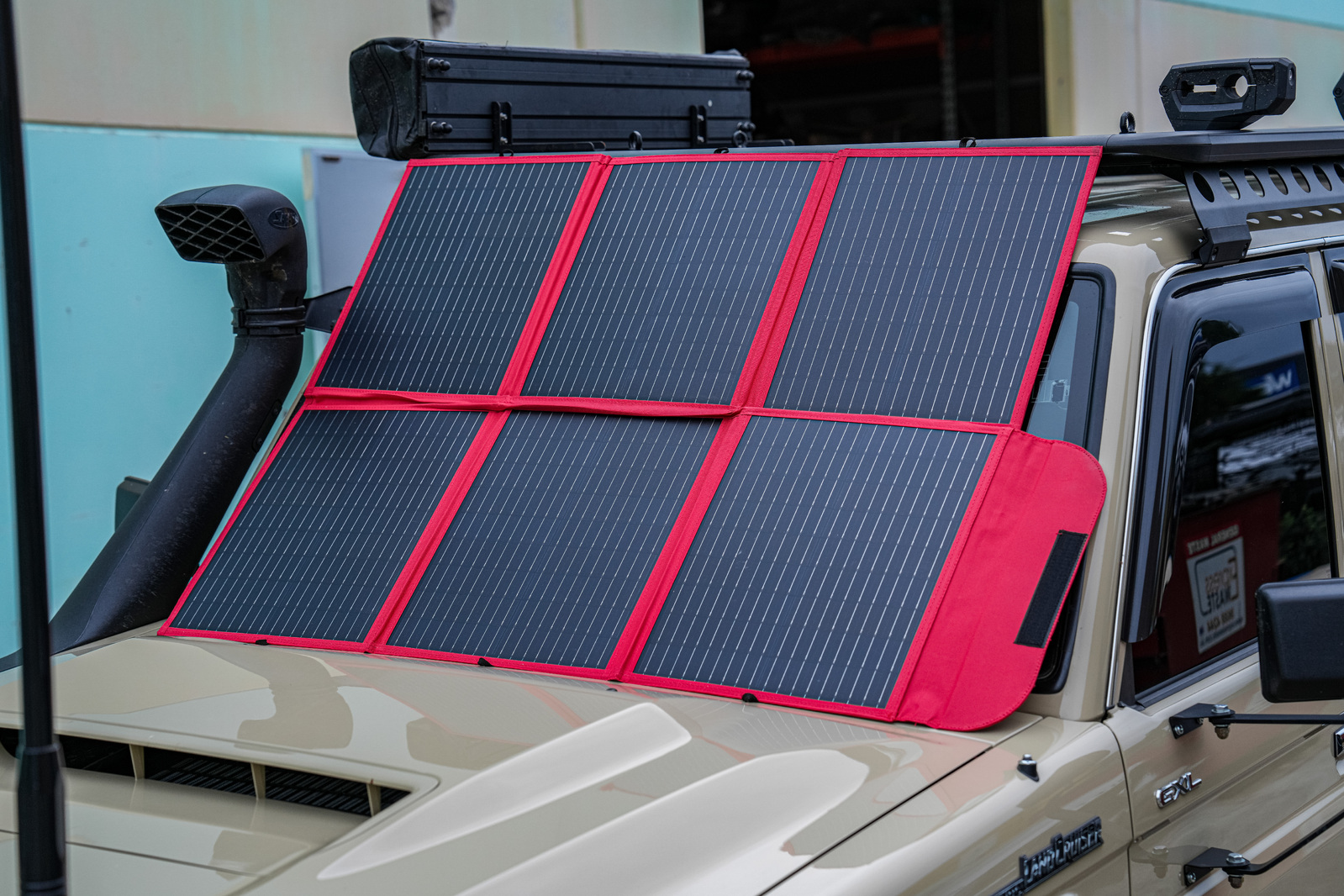

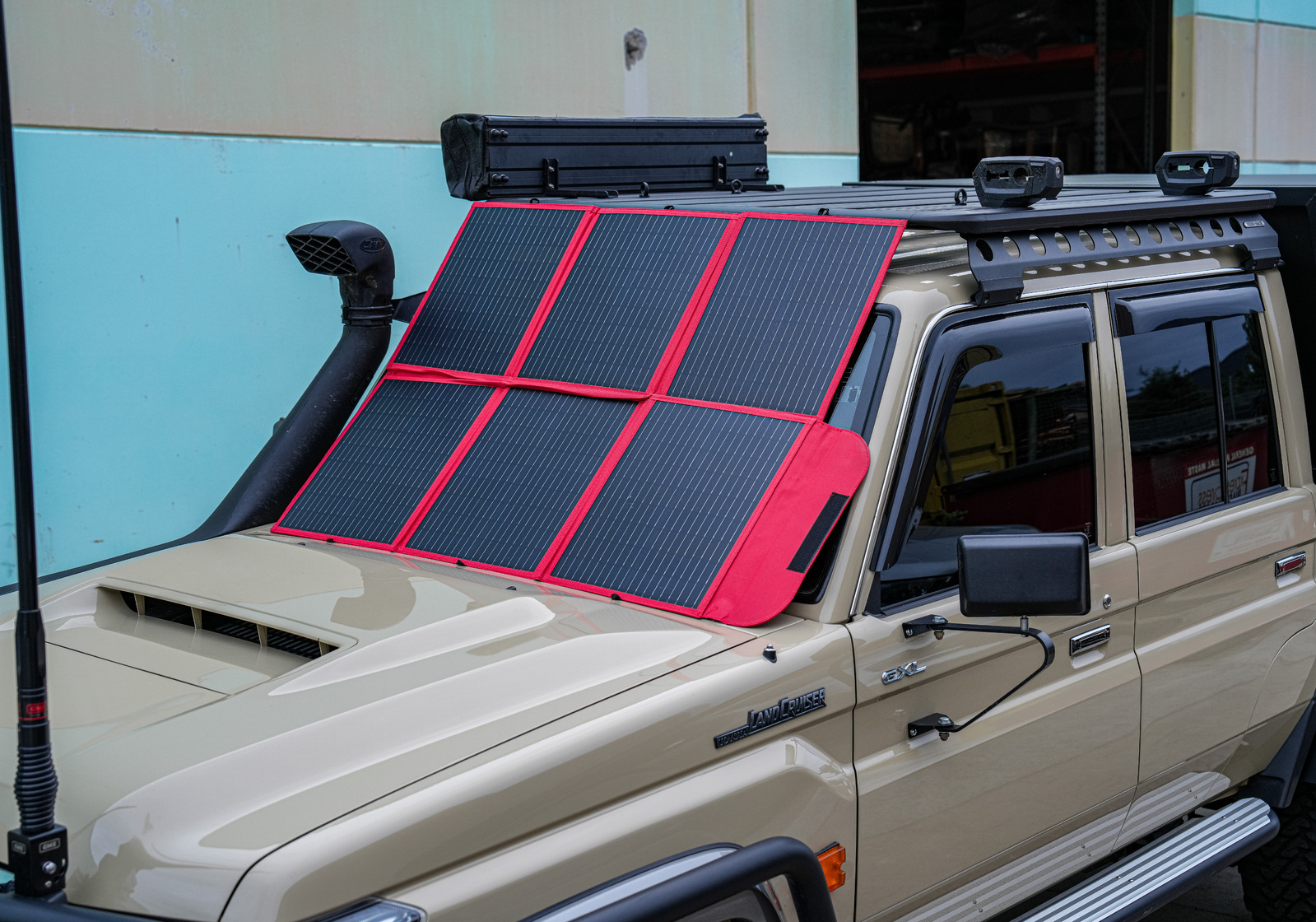

The panels blanket like design allows it to be laid or hung from your vehicle or van making it versatile for every camping and 4wding situation you can throw at it.

OUR DESIGN

Our ultra-compact design allows the panels to be folded to a small size for easy storage while traveling.

Weighing in at only 7kgs, the panel is super lightweight so you don’t have to worry about lugging around a heavy and bulky panel.

The panels blanket like design allows it to be laid or hung from your vehicle or van making it versatile for every camping and 4wding situation you can throw at it.

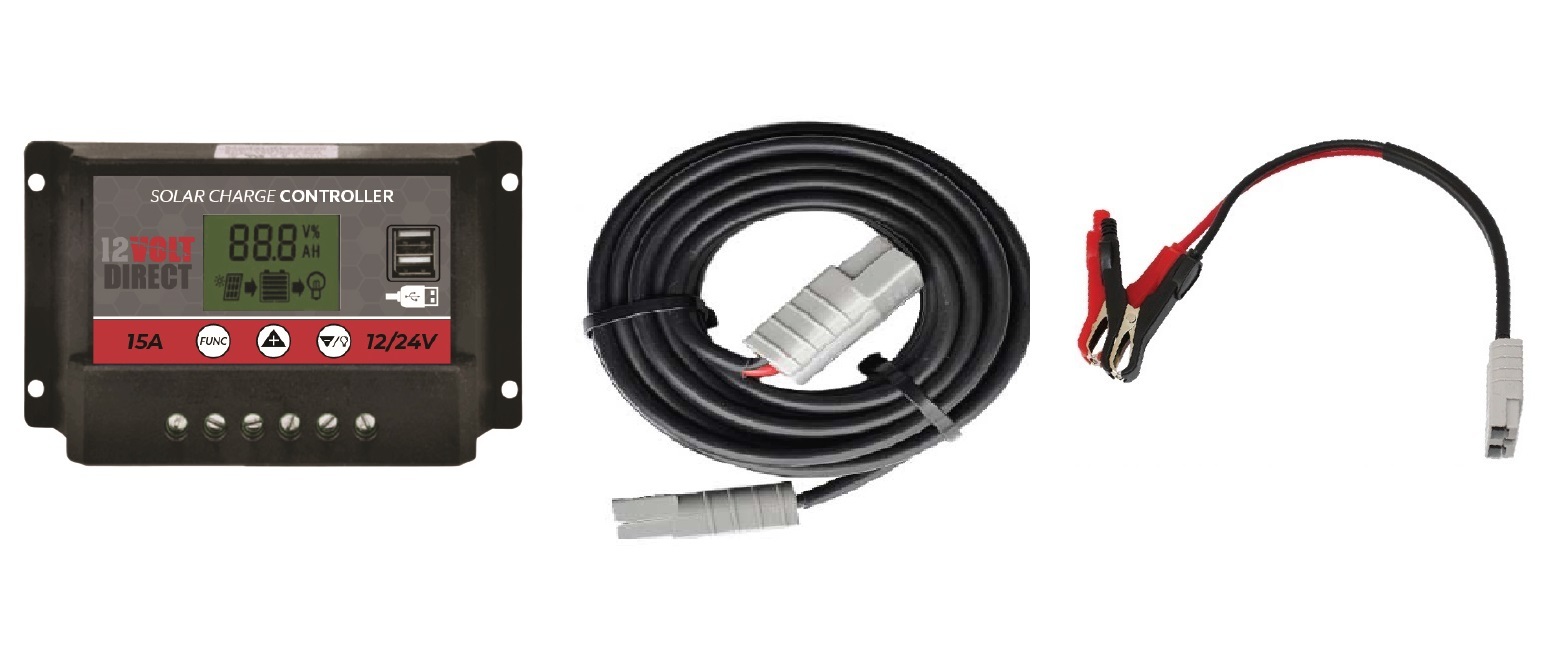

WHAT'S INCLUDED

200W Solar Blanket
PWM Regulator
5M Anderson Style Extension Cord
Aligator clip adapter

THE 12 VOLT DIRECT GUARANTEE

All 12 Volt Direct products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 18 Month Australian Warranty and a 30 Day Money Back Guarantee*.

SPECIFICATIONS

CELL TYPE		A-Grade Mono-crystalline
WORKING VOLTAGE		18.8V
WORKING CURRENT		10.68A
OPEN CIRCUIT (V)		22.8V
SHORT CIRCUIT (A)		11.47A
FOLDED SIZE		350 X 375 X 70MM
UNFOLDED SIZE		1545 X 1010MM
OPERATING TEMP		-40°C - 85°C
WEIGHT		7.0KG

SPECIFICATIONS

CELL TYPE		A-Grade Mono-crystalline
WORKING VOLTAGE		18.8V
WORKING CURRENT		10.68A
OPEN CIRCUIT (V)		22.8V
SHORT CIRCUIT (A)		11.47A
FOLDED SIZE		350 X 375 X 70MM
UNFOLDED SIZE		1545 X 1010MM
OPERATING TEMP		-40°C - 85°C
WEIGHT		7.0KG
