DETAILS

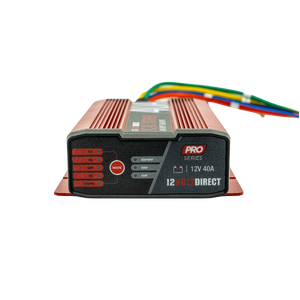

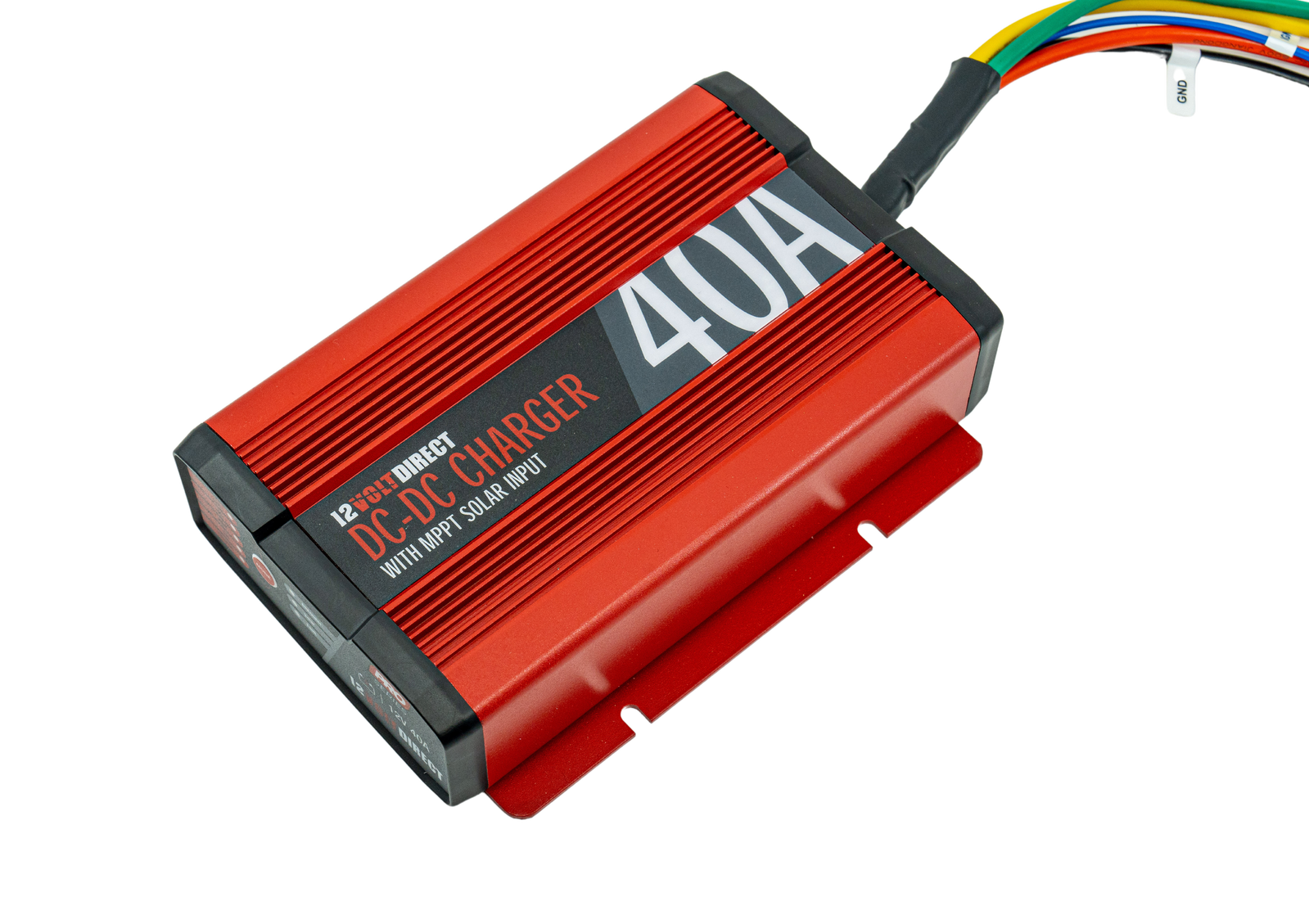

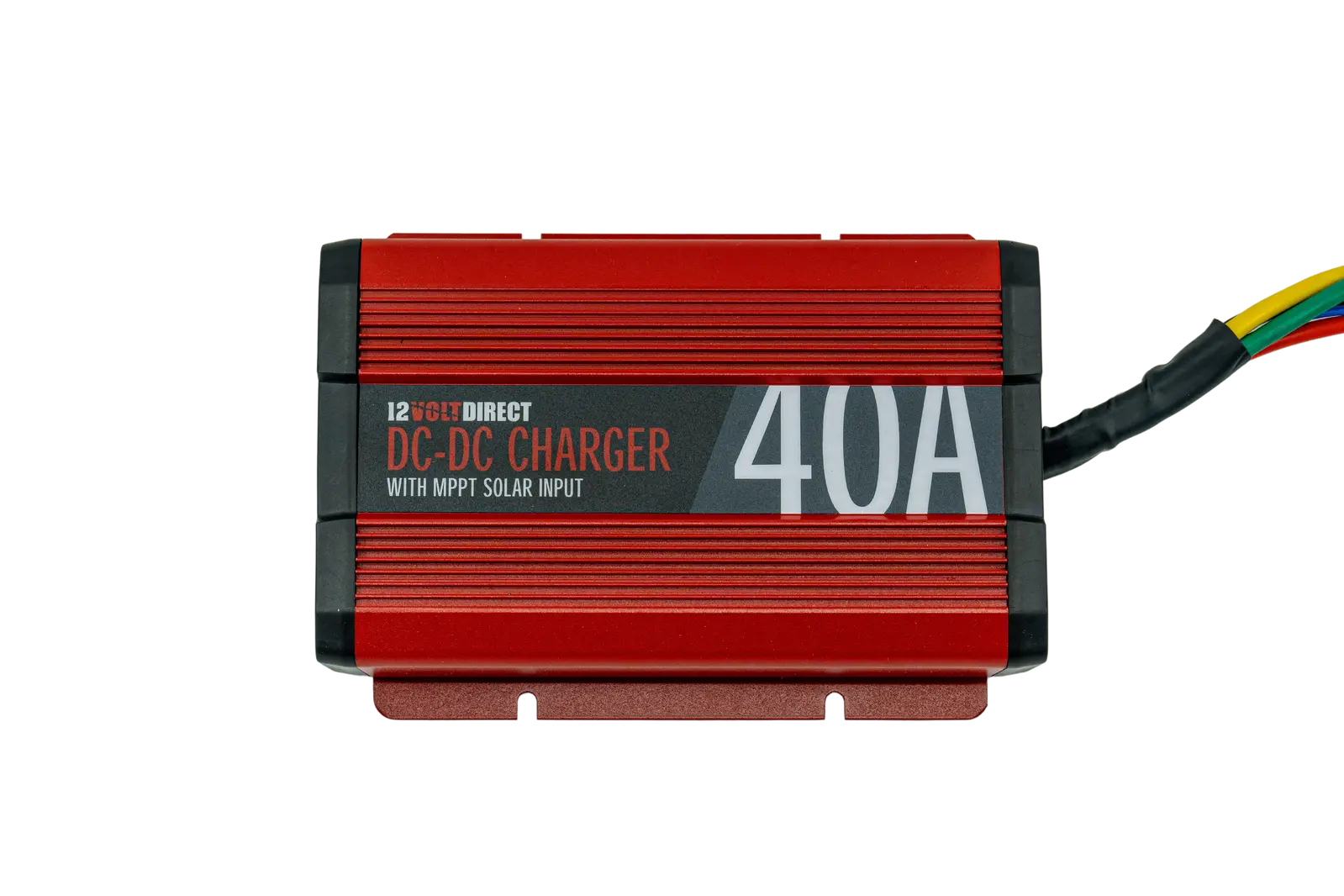

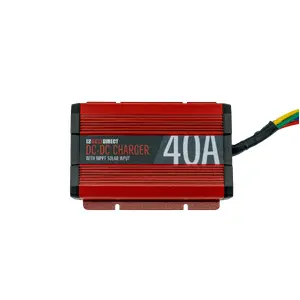

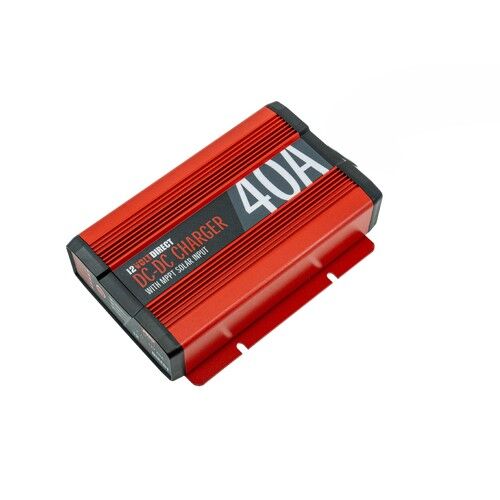

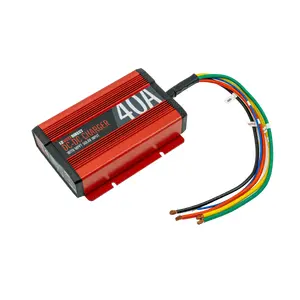

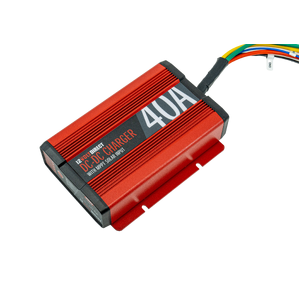

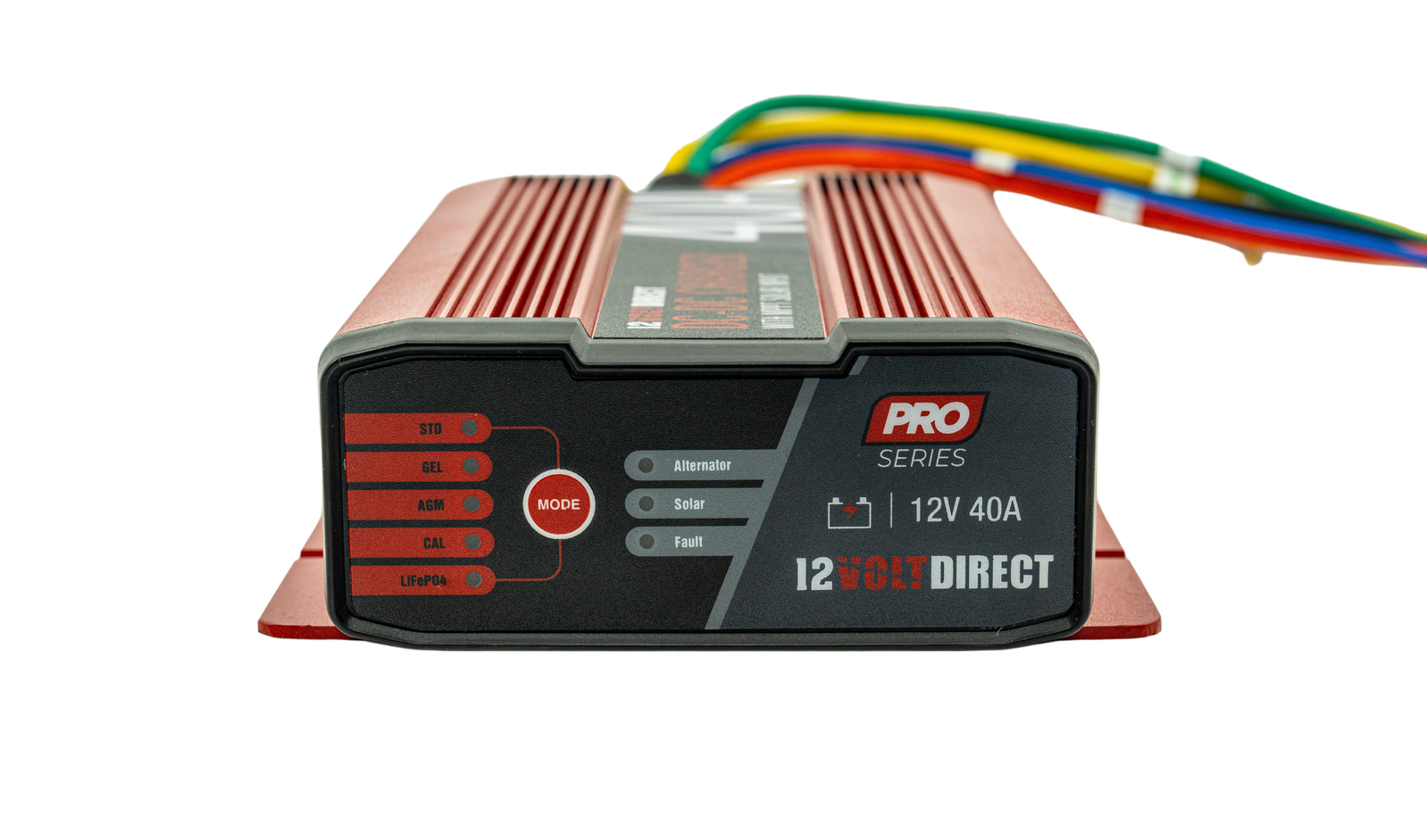

Introducing the 12 Volt Direct 40 Amp Pro Series DC to DC Charger, a robust and efficient solution designed to keep your batteries fully charged and ready for any adventure.



  • IP54 Ingress Protection with Internal Silicone Potting: Engineered to withstand harsh environments, the charger is protected against dust and water splashes, ensuring reliable performance in demanding conditions.
  • Suitable for Under Bonnet Applications: Designed for versatility, it fits seamlessly under the bonnet, making it ideal for vehicles with limited space.

  • Robust Insulated Heat-Dispersing Casing: The charger's casing efficiently dissipates heat, maintaining optimal operating temperatures and ensuring longevity.

  • High Efficiency with No Voltage Drop: Experience consistent and reliable power delivery without any voltage drop, maximizing the efficiency of your charging system.

  • Soft-Start Function: Gently initiates the charging process, protecting your batteries from sudden surges and extending their overall lifespan.

  • Automatic BMS Wakeup Function for Lithium Batteries: Automatically activates the Battery Management System in lithium batteries, ensuring they are correctly charged and maintained.

  • Specialized Lithium LiFePO4 Charging Algorithm: Tailored charging profiles for Lithium Iron Phosphate batteries guarantee optimal performance and safety.

  • Multistage Charging: Fully automatic multistage charging adapts to the battery's needs, providing bulk, absorption, and float stages for comprehensive charging.

  • Compatibility: Supports a wide range of battery types, including Sealed Lead Acid (SLA), Gel, Absorbed Glass Mat (AGM), Flooded, Lead Acid, and Lithium, making it a versatile choice for various applications

SPECIFICATIONS:

  • Input Voltage Alternator: 11.6-18.0 Volts DC
  • Input Voltage Solar: 12.0-28.0 Volts DC
  • Max Output Current: 40 Amps
  • Max Output Power: 500 Watts
  • No Load Current Draw: <10mA
  • Efficiency: 94%
  • Charging Battery Capacity: 80-500AH
  • Working Temperature: -20°C to +60°C
  • Minimum Battery Voltage: 4V / 0V Lithium
  • Dimensions: 196 x 129 x 46mm
  • Charge Type: 3 Stage
  • Ingress Protection: IP54
