DETAILS


This compact charger is suitable for charging Lithium Iron Phosphate batteries (LiFePO4 type) from mains power. It can be left permanently connected to the battery ensuring batteries are ready to go when required. Ideal for motorised golf buggies, mobility scooters, caravans and campers etc. Includes ring terminal and crocodile clips for easy direct connection to the battery. A two state indicator displays when the charger is outputting greater than 0.5A to 5A (red – charging), or less than 0.5A (green – charged/battery maintenance charging). Suitable for use with 12.8V LiFePO4 batteries only.

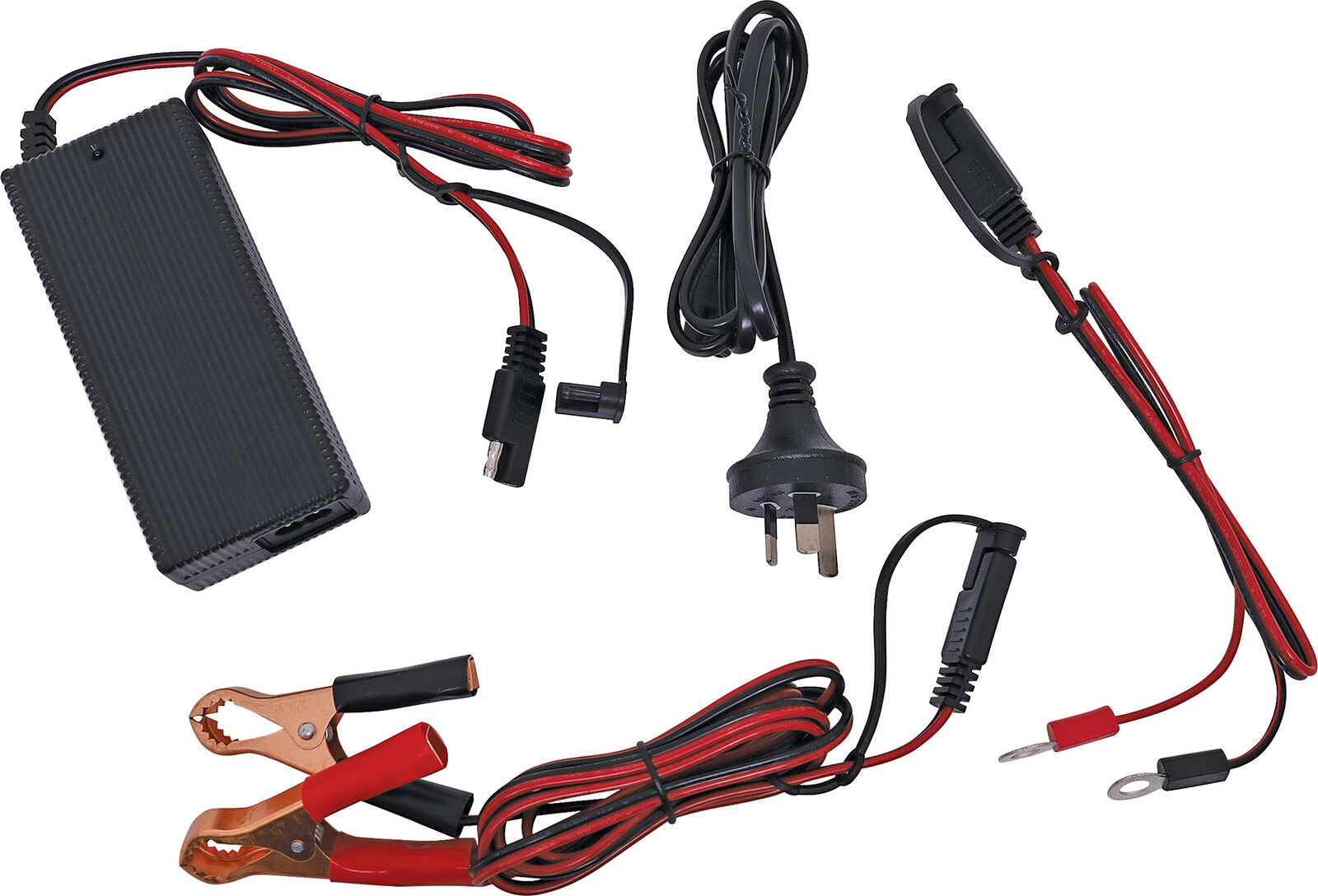

Package Contents
Battery Charger
Cable with ring connectors
Cable with battery alligator clips
Mains plug power cable
Instruction Manual


Features

  • Simple plug and charge operation
  • Can be left permanently on charge
  • Interchangeable charge leads
  • Includes crocodile clip and ring terminal connections
  • Two state LED charge indicator
  • Ideal for charging back up auxiliary batteries and LiFePO4 battery powered vehicles, scooters etc.
  • Operating voltage: 200-240V a.c.  50/60Hz
  • Input Power (No Load): 50mA 240V a.c. 50/60Hz
  • Input Power (Loading): 1.5A 240V a.c. 50/60Hz
  • Operating Temperature Range: -29°C to 45.5°C
  • Output DC voltage: 14.6V
  • Output DC current: 0.5A-5A (charging), <0.5A (maintenance)
  • Battery Chemistry: LiFePO4 Lithium
  • Efficiency: 88% at min rated input and output
  • Dimensions: 132L x 59W x 31Dmm
