DETAILS

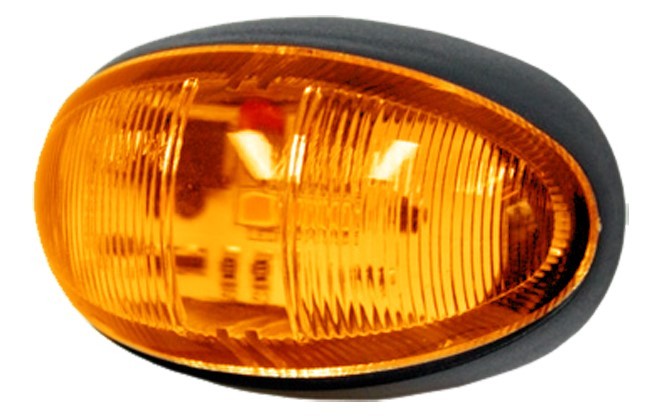

SM65LED series markers are designed for applications where high performance and reliability is required. With wide angle optics and extended base design, the SM65LED series delivers maximum visibility in applications where multiple markers are installed.

Providing a compliant solution for front end outline, rear position, supplementary indicator and side marker functions. These markers also feature a robust Smartclip™ base which is contoured to protect the main lens and LED module from extreme conditions.

The SM65LED series is built for heavy duty use and suited to OEM and commercial vehicle applications.

Features

• Heavy duty LED marker
• Highly visibility design
• Protective base
• Smart Clip™ mounting
• Fully ADR compliant

Specifications

Applications • Trucks • Rigid Bodies • Buses & Coaches • Trailers • Custom Builds
Functions

Side Marker: Amber

Voltage 9-33V DC Varivolt®
Wattage 0.4W - all functions
Mounting Smart Clip™
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M Standard 3M, 6M, 9M Optional
Dimensions 60x38x32mm
ADR Compliance          Side Marker: 45/01
Homologation Certification NA
CRN Pending
