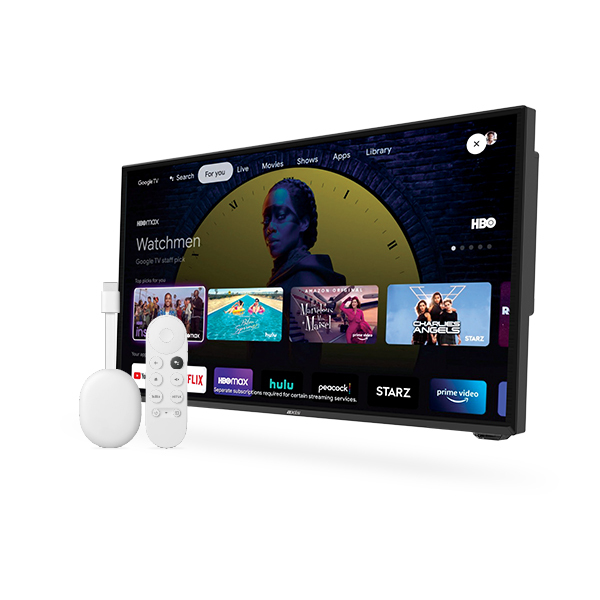

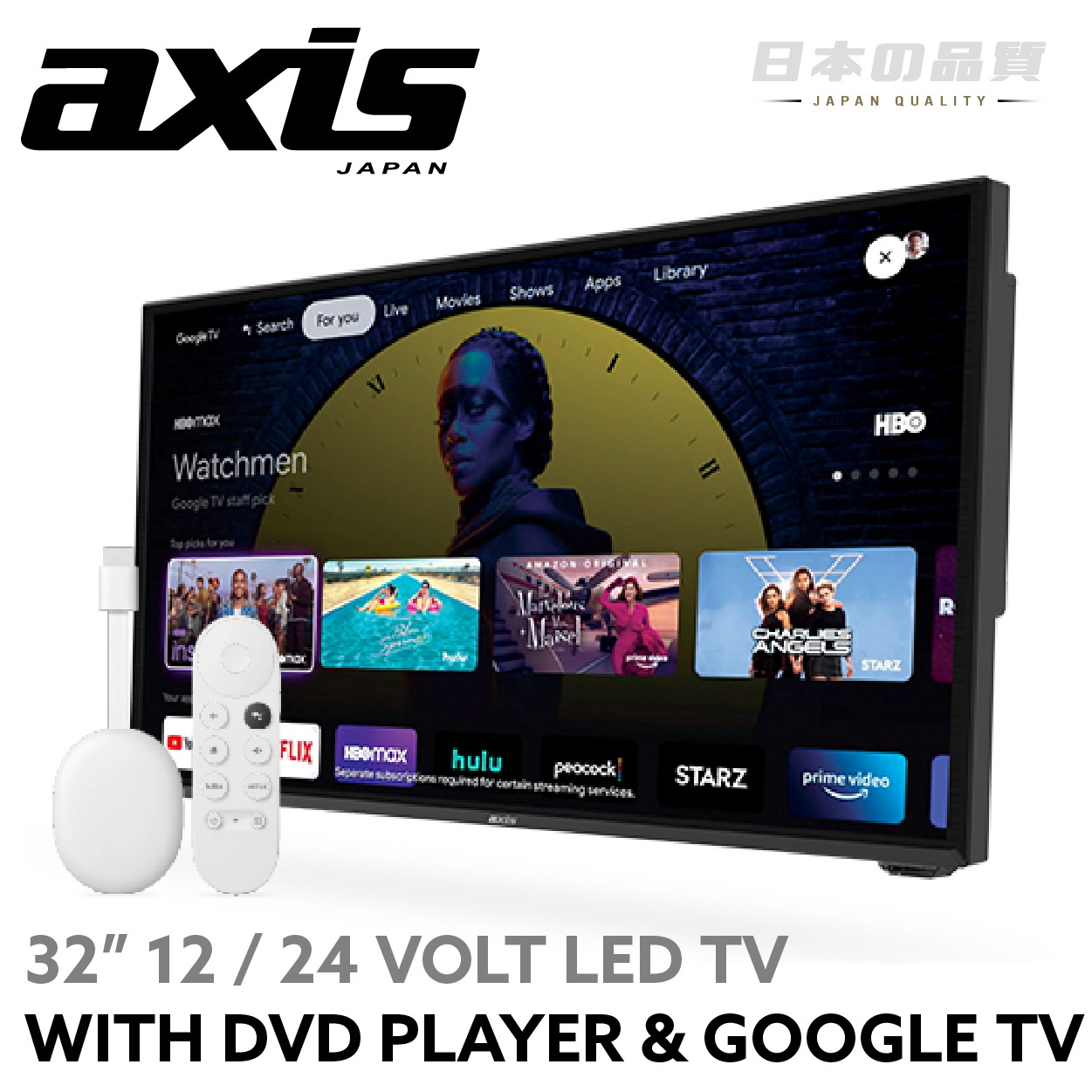

AXIS 32" 12 / 24 Volt HD Smart Google TV for Caravan With DVD, PVR & Bluetooth
DETAILS
AXIS 32" GOOGLE TV SERIES 12 / 24 VOLT LED TV
Specifically designed for caravans, RV’s and other mobile applications.
The AX19GTV series are a 12/24V Bluetooth HD LED TV.
BUILT FOR CARS CARAVANS, TRUCKS & BOATS
Specifically designed for caravans, RV’s and other mobile applications. The AX19GTV series are that support both 12 and 24 volt input for cars, caravans, 4wds, trucks and boats.
CONFORMAL COATED CIRCUIT BOARD
The AX19GTV series are built to resist the moisture and handle vibrations experienced when on the move in marine and vehicle enviroments.
MULTIPULE INPUTS
The AX19GTV series are a 12/24V Bluetooth HD LED TV that support a wide choice of media inputs, which allows enjoyment of movies, music, photos and more via DVD, CD, USB or an external source unit.
SPECIFICATIONS
PANEL
- Display Size: 19” (48cm), 22” (56cm), 24” (60cm), 32” (81cm)
- Resolution: 1366 x 768 - AX1919/32 1920 x 1080 - AX1922/24
- Brightness: 200cd/m2 - AX1919
- 220cd/m2 - AX1922/24
- 250cd/m2 - AX1932
- - Contrast: 1000:1 - AX1919
- 3000:1 - AX1922/24
1200:1 - AX1932
- Viewing Angle: 176(H) x 160(V) - AX1919
178(H) x 178(V) - AX1922/32
176(H) x 176(V) - AX1924
POWER
- Input: 9-36V DC / 4A @12V
- Optional AC Adapter: 240V 50Hz/60Hz
- Stand-by Power Consumption: 0.5W
CABINET
- Conformal Coated Circuit Board
- Size: 440 x 50 x 263 mm - AX1919
- 506 x 49 x 301mm - AX1922
- 552 x 54 x 325mm - AX1924
- 731.1 X 85.7 X 432.4 - AX1932
- 100 x 100 VESA Mounting - AX1919/22/24
- 100 x 200 VESA Mounting - AX1932
- Net weight: 3.4 kg - AX1919
- 3.8 kg - AX1922
- 4.5 kg - AX1924
- 5.1 kg - AX1932
MULTIMEDIA & FEATURES
- TIMESHIFT: Pause, Rewind & Fast-Forward
- Live TV (using PVR)
- USB Reader
- PVR (Personal Video Recorder)
- EPG (Electronic Program Guide)
- DVD/CD PLAYER
- Built-In DVD Player
- Supports DVD/VCD/CD/MP3/DIVX/JPEG
- Supports DVD±R/DVD±RW/CD-R/RW
- TUNER
- DVB-T Digital HD Tuner
- Analogue Tuner
- DTV Video System: MPEG-1MP@ML, H.264, MPEG-4 (Video Codes)
- DTV Sound System: MPEG-1 Layer 1/2
- ATV Video System: PAL
- ATV Sound System: BG, DK, I
SYSTEM
- MPEG-4 Video System
- OSD: Multi-languages
- Number of Channels: 99
- Comb Filter: 3D
- Teletext: ATV/1000 Pages
- Speakers: 2 x 3W Stereo - AX1919/22/24
- 2 x 8W Stereo - AX1932
INPUTS
- RF/Antenna: 1
- HDMI: 2
- USB: 1 x Media, 1 x Power Output (22”, 24”, 32”)
- Mini YPbPr: 1
- Mini AV: 1
- VGA: 1
- PC Audio: 1
OUTPUTS
- Bluetooth Audio Transmitter
- Headphone: 1 (3.5mm)
- Digital Coaxial: 1
- Line Out: 1
