Enhance Your Power Monitoring with the SC302T Combo Shunt 300A

The SC302T Combo Shunt 300A is an advanced monitoring device designed to provide precise measurements of your battery system's performance. Capable of handling continuous currents up to 300A, it offers real-time data on battery voltage, temperature, and current, ensuring optimal management of your power resources. With additional inputs for tank level monitoring, the SC302T is ideal for applications in marine, RV, and off-grid setups.

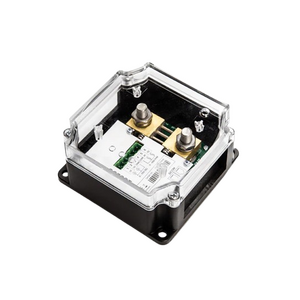

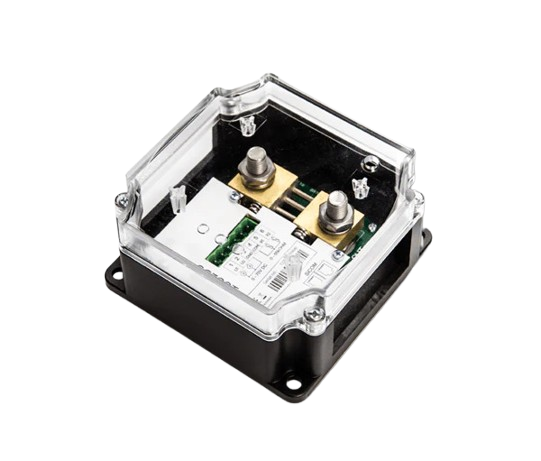

Small electronic device with black base, exposed circuitry under transparent cover.

Specifications:

  • Voltage Range: 6 - 75 VDC
  • Current Measuring Range: 0.01 - 300A
  • Accuracy: ±1%
  • Resolution: 0.01A
  • Sampling Rate: 100 ms
  • Maximum Continuous Current: 300A
  • Peak Current (<5 min): 400A
  • Operating Temperature Range: -20°C to +70°C (-4°F to 158°F)
  • Power Consumption at 12V: 1.2 mA
  • Dimensions: 125 x 70 x 22 mm (4.92 x 2.75 x 0.86 in)
  • Battery Connection: M10 bolts
