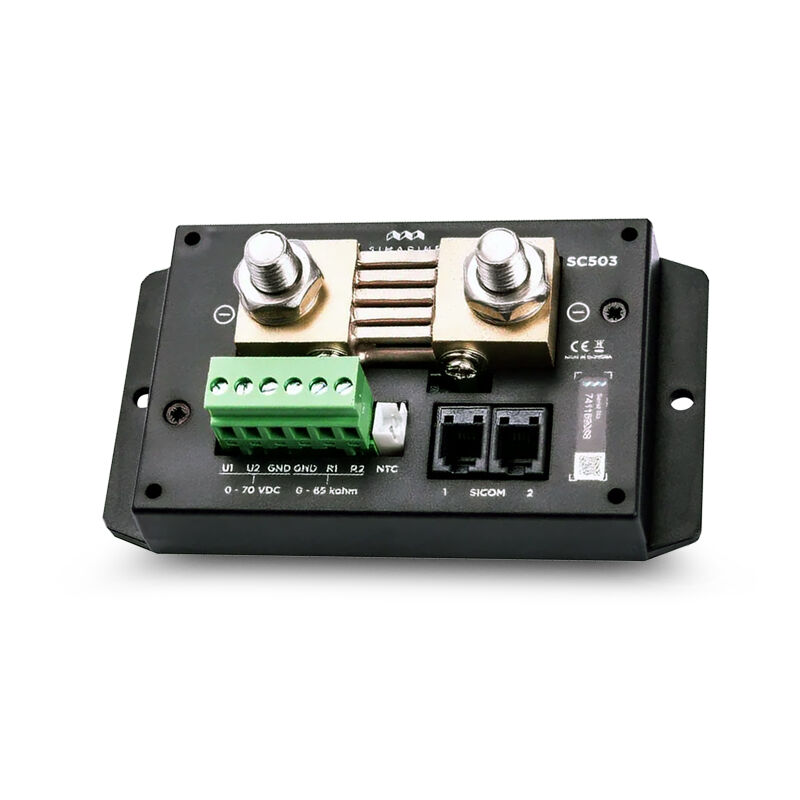

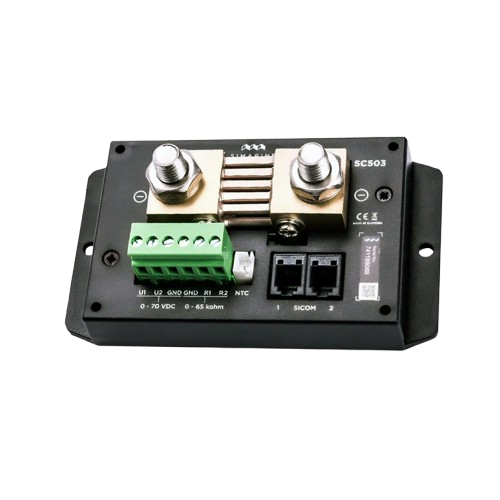

Simarine SC503: Advanced 500A Battery Monitoring Shunt with Tank Level Integration

The Simarine SC503 is a high-precision digital shunt designed to provide comprehensive monitoring of your battery system. It measures voltage, current, and temperature, ensuring you have complete visibility into your battery's performance. Additionally, it integrates tank level monitoring, offering a versatile solution for various applications.

Specifications:

  • Operating Voltage Range: 6 - 35 VDC
  • Current Measuring Range: 0.01 - 500 A
  • Accuracy: ±1%
  • Voltage Inputs: 2 inputs up to 75.0 V
  • Resistance Inputs: 2 inputs for temperature or tank level sensors
  • Temperature Sensor: NTC 10k, range from -13°C to +80°C
  • Dimensions: 125 x 70 x 22 mm
  • Weight: Approximately 0.5 kg
  • Mounting: M10 bolts
