DETAILS

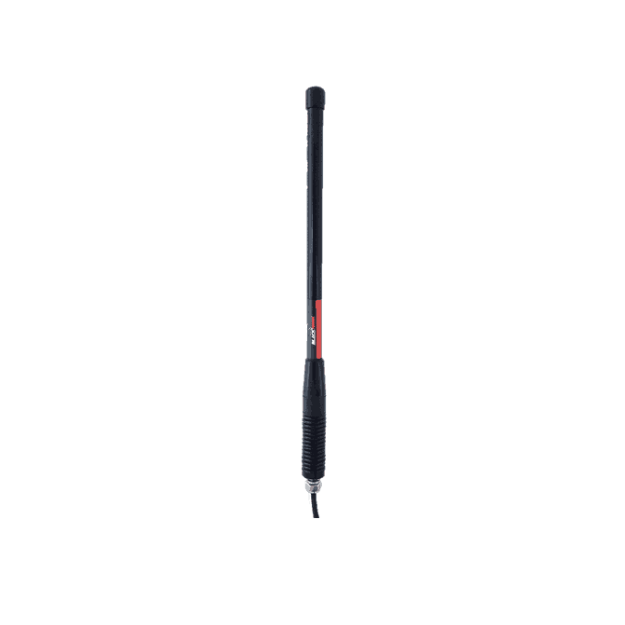

The Blackhawk Trucker Mini is the last in the series of Trucker antennas with complimentary sizes for all applications. This antenna can operate on any network in Australia, with the flexibility to be roof mounted, gutter or mirror mounted. At 40cm length, the antenna will sit below the roofline of most vehicles meaning no more worries about underground car parks or other low clearance areas.

FEATURES

  • 3 dBi gain across lower bands 698-960 MHz
  • 5 dBi gain across upper bands 1710-2700 MHz
  • Ruggedised construction for Australian conditions
  • Flexible enough to be roof, gutter or mirror mounted
  • Supplied with 4m of PT240 LSHF ultraflex cable with a pre-fitted SMA male connector
  • Ideal antenna for the Cel-Fi GO vehicle repeater

Combine with a Cel-Fi vehicle booster to never be out of contact when away from home. The antenna has an SMA male connector which will screw directly into your Cel-Fi vehicle booster, providing full signal inside your car or truck

All Blackhawk Antennas come with a 5 year warranty

ELECTRICAL SPECIFICATIONS

Frequency Range 698-960 MHz / 1710-2700 MHz
Input Impedance 50 Ω
Peak Gain 3 / 5 dBi
VSWR ≤2.0 / ≤2.0
Polarisation Vertical
Horizontal Beamwidth 360°
Vertical Beamwidth 60°
Maximum Input Power 100 W
Lightning Protection DC Ground

MECHANICAL SPECIFICATIONS

Connector SMA with 4m PT240 LSHF UF Coax Cable
Dimensions Ø16×400 mm
Weight 0.5 kg
Reflector Material Copper
Radome Material Fiberglass
Colour Black
Rated Wind Velocity 210 km/h
Operating Temperature -40 to +65°C
Mounting Pole Ø38-Ø52 mm
