DETAILS


Modular Solar Power System for All Needs

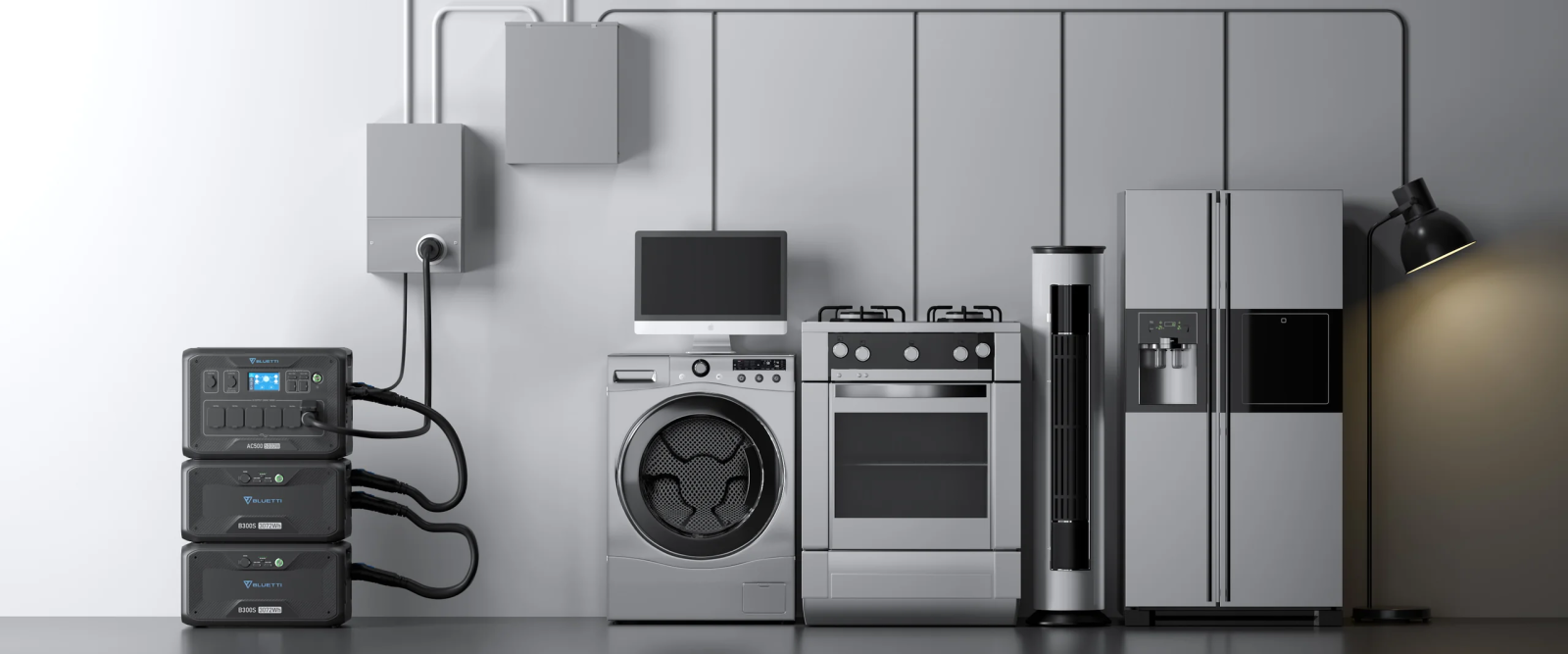

Compatible with B300S and B300 batteries for an expandable power system, AC500 will definitely shift the way you harness the solar energy. It's designed to help you go through power outages, stay connected to unlimited energy wherever you are heading.

Charge in Any Way You Like

No matter where you are, you can charge your AC500 system at any time. With the wall outlet and solar panels plugged in, the AC500 system supports up to 8,000W impressive input rate (At least 2*B300S packs required). Get the system recharged before you pack up for the camping, and your power will be ready when you are.

Specs

OUTPUT

AC Outlets: 3 x 240V/10A Outlets, 2 x 240V/15A, 1 x 240V/32A, 5,000W In Total
Inverter Type: Pure Sine Wave
Surge Power: 10,000W
USB Port: 2 x 5V/3A USB-A, 2 x 18W USB-A, 2 × USB-C 100W Max.
DC Outlets: 1 x 12V/30A (RV Outlet), 1 x 24V/10A (Car Outlet), *All regulated.
Wireless Charging Pad: 2 x 15W Max.

INPUT

AC Input: 4,500W Max. (W/ 1*B300S), 5,000W Max. (W/ 2 or more B300S).
Solar Input: 3,000W Max. VOC 12-150VDC, 15A
Car Input: 12/24V from Vehicle Cigarette Lighter Port
Maximum Input: 4,500W (W/ 1*B300S), 8,000W (W/ 2 or more B300S) AC + Solar Dual Charging

GENERAL

App Control: WiFi & Bluetooth Connection
Scalability: Expandable with 6×B300S or 4×B300
Weight: 66.2lbs (30kg)
Dimensions (LxWxD): 20.5 x 12.8 x 14.1in ( 52 x 32.5 x 35.8cm)
Operating Temperature: -4℉-104℉ (-20℃-40℃)
Storage Temperature: -13℉-104℉ (-25℃-40℃)
Certification: UL2743, UKCA, TELEC, RCM, FCC ID, CE
Warranty: 48 Months
