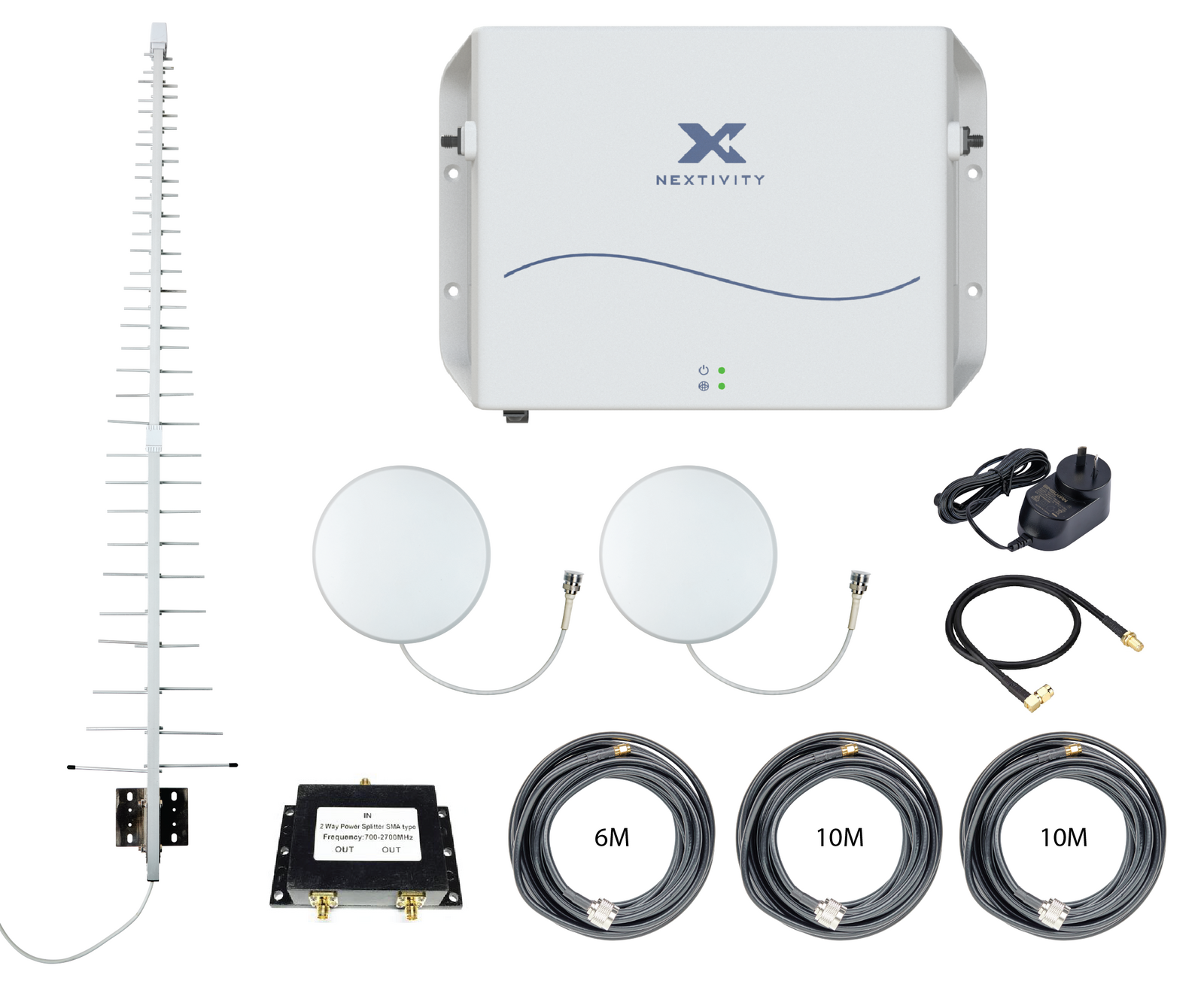

CEL-FI GO G51 Stationary 4G/5G Tri-Carrier Switchable Signal Booster Multi Level LPDA Building Pack
DETAILS
Introducing the first Cel-Fi repeater with 5G support! Nextivity’s G51 1/3/5/7/8/28L/n78 Stationary Repeater, brings the power of both 4G and 5G indoors, solving coverage challenges for residential and commercial buildings. The system delivers industry-leading signal gain up to 100 dB to overcome mid-band 5G NR coverage challenges that no other solution can.
In addition to unmatched performance, GO G51 is compact, easy-to-use, and does not require manual configuration, making it easier than ever before for building owners to equip their buildings with 5G connectivity and ensure better voice quality, 5G data speeds, and fewer dropped calls. GO G51 is perfect for small- to medium-sized buildings, Australian operator approved, unconditionally network safe, and offers the flexibility to support various 3G/4G and 5G cellular networks.
Band Support by Operator:
Telstra | Optus |
3G – 850 | 3G – 900 |
4G – 700L/1800/2100/2600 | 4G – 700L/900/1800/2100/2300/2600 |
5G – 3500 | 5G -3500 |
FEATURES:
- Relays two channels simultaneously:
1st Relay Channel: 5G 3500 (100MHz)
2nd Relay Channel: one 3G or 4G band (5/10/15/20MHz) - Carrier Switching using WAVE App between Telstra or Optus – one carrier at a time (Vodafone approval pending)
- Up to 3000 m2 coverage area
- Voice and Data support on 4G/5G
- Suited for those in a 5G 3500 coverage area (G41 is more suitable for areas outside of a 5G 3500 coverage area as it supports 2 x 4G band relay)
- Powered by the latest 4th generation Nextivity proprietary IntelliBoost chip, delivering industry-leading and unconditionally network safe performance
- Establishes network safe uplink power in real-time and automatic uplink muting when no active user equipment is detected
- Ethernet Port for remote monitoring and management with Nextivity WAVE Portal and WAVE App
Band Relay
Relays two bands at a time from below:
First Relay Channel: 5G 3500 (100MHz)
Second Relay Channel: 3G/4G band (5/10/15/20MHz)
Output Power
DL Power: 27dBm (n78); 20 dBm (1/3/5/7/8/28L) per band
Should provide the same coverage as a G41 on 4G and 5G.
Max Data Throughput
570Mbps
Ports
Ethernet Port for remote monitoring
Power Port
2 x SMA/F Antenna Ports
