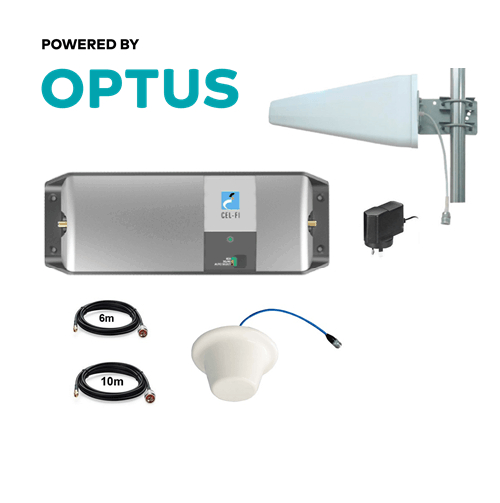

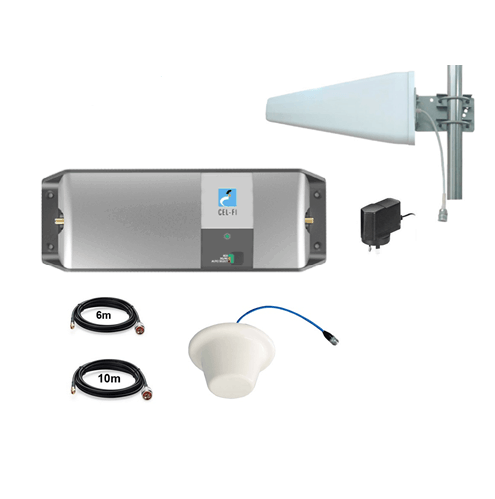

Cel Fi Go Optus Building Pack

DETAILS

The Cel-Fi GO Smart Repeater is the ideal product to boost and distribute a 3G/4G mobile signal within your house, office, donga, car, 4WD, truck or caravan.

Cel-Fi supports voice and mobile data for multiple mobile devices making dropped calls and slow internet a thing of the past.

Suitable for users that travel between areas of patchy coverage where signal may be weaker or lacking, Cel-Fi GO Mobile Smart Signal Repeater can both improve and extend coverage in areas where signal doesn’t normally reach.

TESTED, AUTHORIZED & APPROVED BY OPTUS.

Cel-fi Go has been tested, authorized and approved by Optus for use on the Telstra Mobile Network.

BE AWARE OF ILLEGAL MODELS

Cel-Fi Go is the ONLY carrier approved repeater in Australia. Done get caught out with an illegal model from questionable websites or eBay. Persons found to be using unapproved devices can be fined up to $1.05 Million or up to 5 years in prison if prosecuted by the Australian Communications and Media Authority (AMCA).

TESTED, AUTHORIZED & APPROVED BY OPTUS.

Cel-fi Go has been tested, authorized and approved by Optus for use on the Telstra Mobile Network.

BE AWARE OF ILLEGAL MODELS

SUPPORTED NETWORKS

Optus
TPG
Amaysim
Dodo
iiNet

HOW DOES CEL-FI WORK?

Cel-Fi is is a repeater system. It works by having two antennas, one externally mounted to a building or vehicle that communicates to the operator's network and one internal antenna within the building or vehicle that communicates with your mobile devices.

Cel-Fi works seamlessly with your existing 3G / 4G devices (Phone, Modem / Wifi Hotspot, iPad with Simcard, etc) by boosting the signal to the operator's network by up to 100dB. There is no need to connect to Cel-Fi in order for it to work. It can support up to 50 devices at once so everyone can remain connected.

HOW DOES CEL-FI WORK?

WHAT INTERNAL ANTENNA SUITS MY NEEDS BEST?

Internal or ‘donor’ antennas go inside the building and distribute the signal amplified by the Cel-Fi GO repeater. The majority of our internal antennas are wideband meaning they encompass all currently available bands in Australia (3G, 4G & 4GX).

ADHESIVE MOUNT ANTENNA
These antennas are easily hidden measuring ~10cm long with an adhesive back. Used primarily for marine, caravan and car applications where other internal antennas are too strong to achieve the required isolation.

WALL MOUNT PANEL ANTENNAS
Able to be wall-mounted, this antenna is directional – meaning its signal is dispersed primarily within a 90° beam-width in the direction the panel faces. It’s ease of installation and non-obtrusive appearance makes it ideal for pushing through long spaces or lightly walled areas (ie. home environment, sheds, dongas)

CEILING DOME ANTENNA
Ceiling dome antennas pushes signal out in a 360° beam-width making it ideal for offices and home environments where ceiling mounting is desirable. (Also available in a lower profile model for a more aesthetic appearance.)

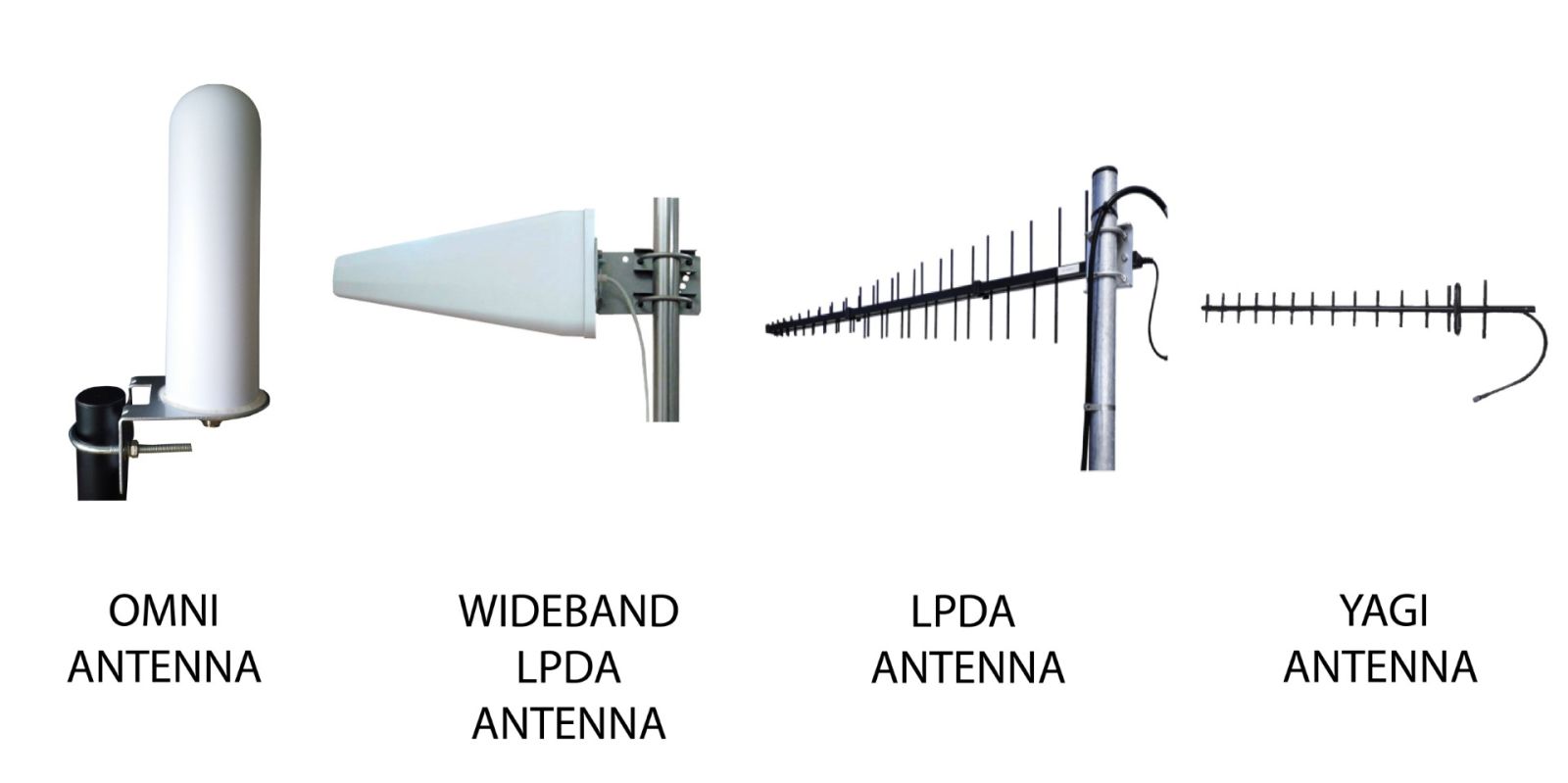

WHAT EXTERNAL ANTENNA SUITS MY NEEDS BEST?

DIRECTIONAL ANTENNAS
These are high gain antennas which need to be aligned with the signal source. They are able to pull signal over large distances (60km+) where clear LoS (Line of Sight) is able to be obtained. Best used in remote locations or where signal source location is known.

YAGI
These are the highest gain antennas available and are able to to achieve long distances but also requires precision alignment due to its narrow beamwidth (5-10°).

LPDA
This is the general ‘go-to’ antenna – wideband (covering 3G, 4G, 4GX & 5G), providing good gain with a forgiving beamwidth (32-55°) to suit most rural, regional and urban situations. It does need to be aligned with a source signal, however, does not require the same precision as the Yagi.

WIDEBAND LPDA
This ultra-light LPDA antenna needs to be pointed towards the direction of where the signal is coming from and pole mounted. Similar to the previous LPDA model however with less gain (less range) and a more ascetic appearance. Perfect for urban or suburban environments.

WHAT EXTERNAL ANTENNA SUITS MY NEEDS BEST?

YAGI
These are the highest gain antennas available and are able to to achieve long distances but also requires precision alignment due to its narrow beamwidth (5-10°).

WHAT EXTERNAL ANTENNA SUITS MY NEEDS BEST CONTINUED....

OMNI ANTENNA
For use when clear LoS cannot be established (yet signal exists) or for ease of installation in suburban/regional environments. Pulls signal from 360°.

OMNI HIGH GAIN
An Omni-directional antenna does not need to point towards the direction of where the signal is coming from and will receive a signal from 360 degrees. It can be roof, gutter or wall-mounted. Not recommended in low signal areas unless LoS cannot be determined.

FREE PROFESSIONAL CONSULTATION

We know all of this technical jargon can be confusing so we offer a FREE no string attached free professional consultation.

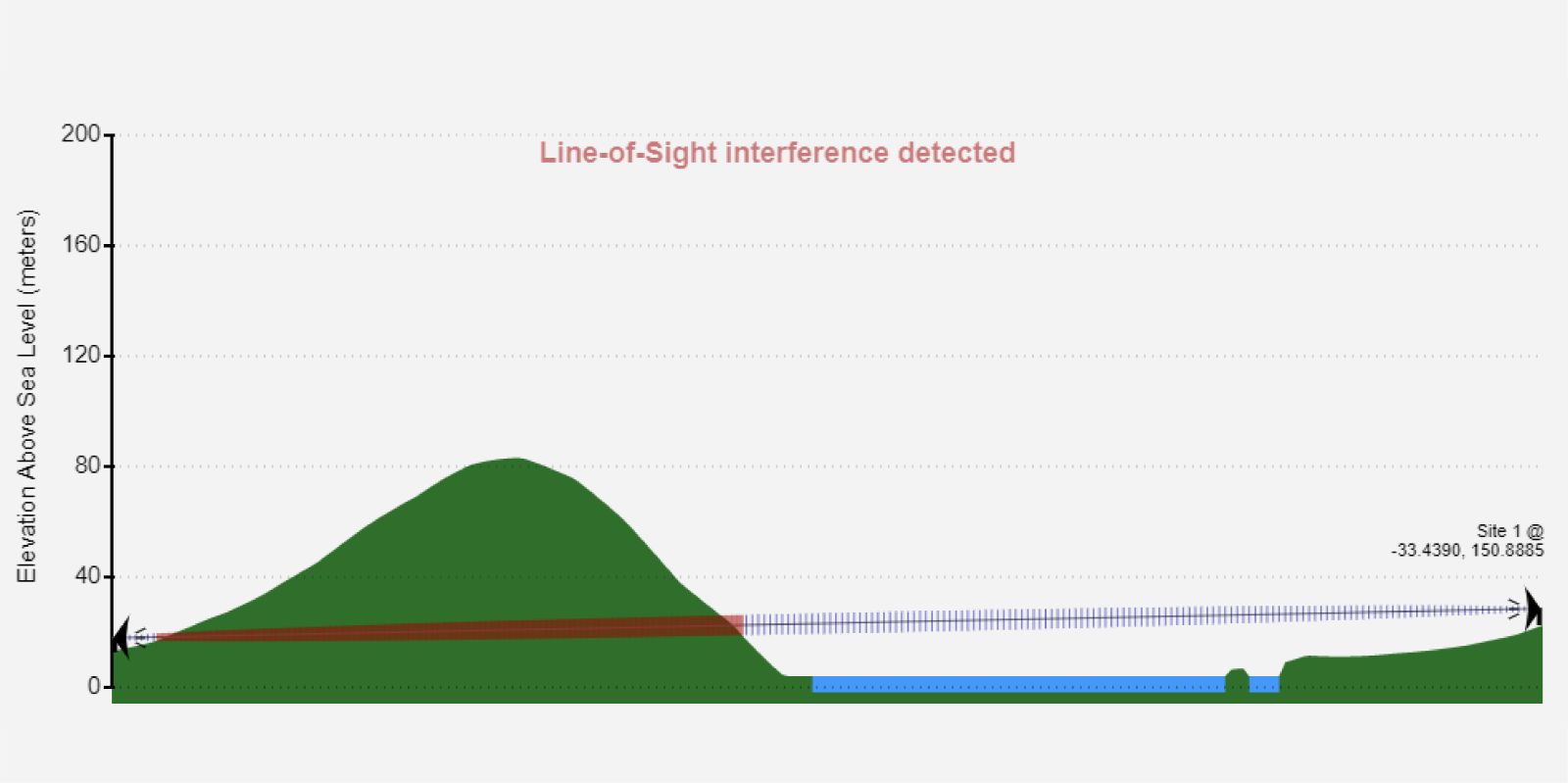

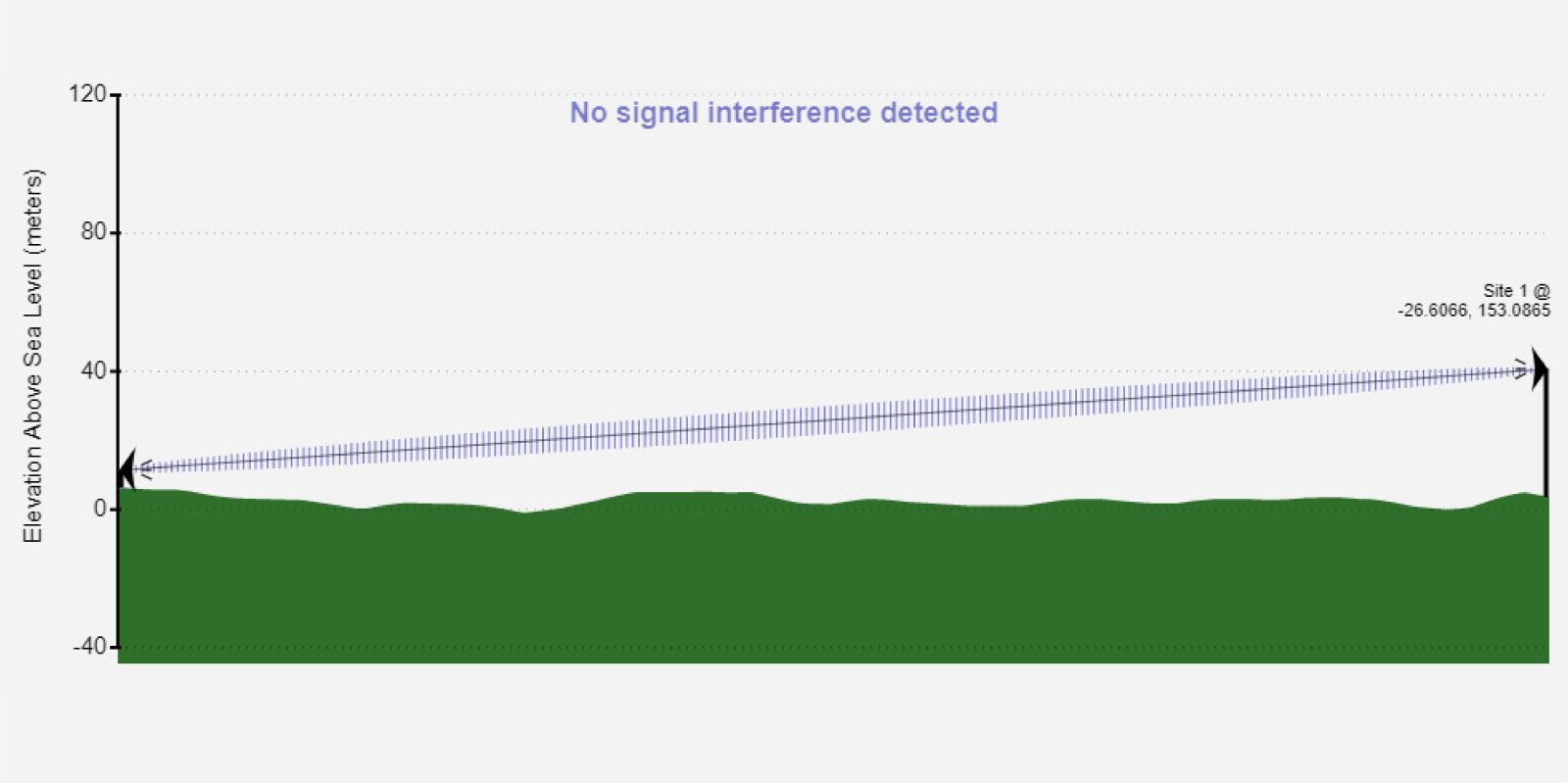

Using computer-generated signal modelling our experienced staff are able to recommend or build the correct kit for your needs.

Please contact us with the information below:
