DETAILS

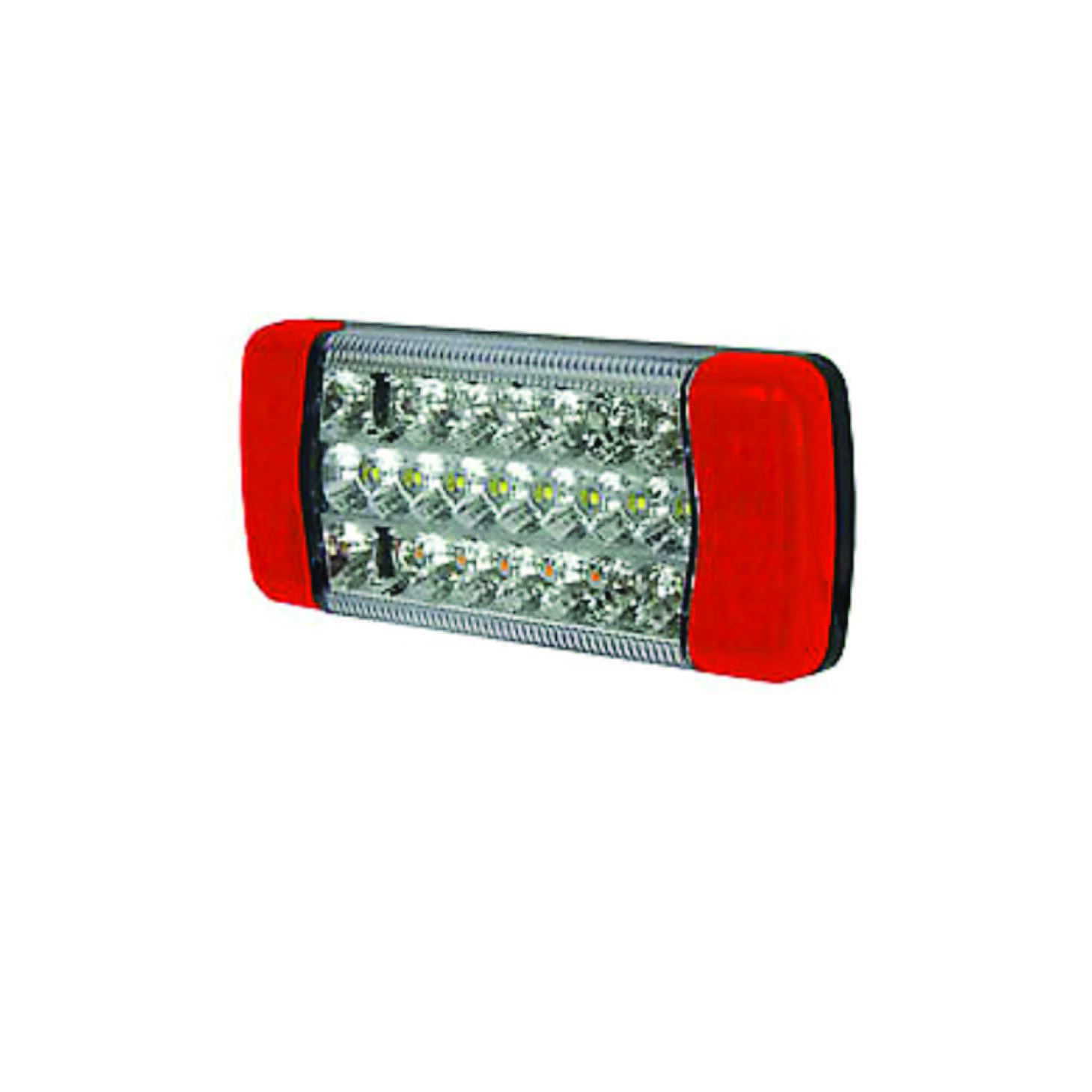

The CRL220LED series is a multifunction rear combination lamp featuring advanced LED optical free form reflector technology to achieve a highly styled robust lamp that can be customised to match modern vehicle and trailer designs. The CRL220LED series is made for heavy duty use and includes a high impact polycarbonate lens and strong ABS Base. ADR compliant for stop, rear position, direction indicator in a single compact package, the CRL220 series uses SmartClip™ end covers which offer upgradable options. This feature allows for custom options including coloured end clips, integration clips two combine two or three lamps as one and end reflectors for a fully compliant rear lighting solution. Suited to OEM and commercial applications.

Features

• Free form optics
• High reliability design
• Innovative end clip upgrades
• Easy customised for specific applications
• Fully ADR compliant

Specifications

Applications • Trucks • Rigid Bodies • Buses & Coaches • Trailers • Custom Builds
Functions Stop / Rear Position / Direction Indicator
Voltage 9-33V DC Varivolt®
Wattage Stop:3W
Rear Position:0.4W
Indicator:3W
Reverse:2.5W
Mounting Base mount with Smart Clip™ covers
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 222x96x34mm
ADR Compliance          Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a
CRN Pending
