DETAILS

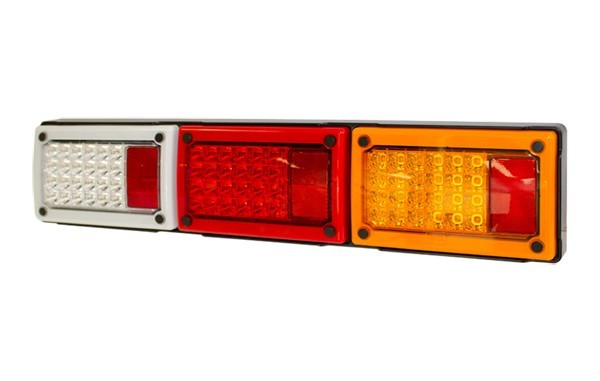

The all new CRL605LED Series Jumbo LED lamps deliver quality, performance and durability for heavy duty applications. Featuring high visibility optics and modular design, the CRL605LED series can be customised to suit stop / rear position / direction indicator and reverse functions as required. Each module also incorporates an integrated reflector providing a complete compliant rear signalling solution. Constructed with ultra strong polycarbonate lenses with enhanced chemical protection, high reliability optics and toughened ABS base the CRL605LED series is designed to handle the toughest of conditions under constant operation. Suited to OEM and commercial vehicle applications.

Features

• Heavy duty rear Jumbo lamp
• Modular design with security caps
• Integrated reflectors
• Slimline profile
• Fully ADR compliant

Specifications

Applications • Trucks • Rigid Bodies • Buses & Coaches • Trailers • Custom Builds
Functions Stop / Rear Position / Direction Indicator / Reflector
Voltage 9-33V DC Varivolt®
Wattage Stop:3W x 2
Rear Position:0.4W x 2
Indicator:3W
Mounting Modular heavy duty ABS base
Materials Polycarbonate Lens ABS Body
Environmental IP67 Hermetically Sealed
Cable Length 0.5M
Dimensions 601x131x42mm
ADR Compliance          Stop & Rear Position:49/00, Rear Direction Indicator:6/00:Cat2a, Rear Retro Reflector:47/00
CRN Stop - 48002, Tail - 48003, Direction - 48001, Reflector - 48284
