DETAILS


EDARC continues to set the benchmark in trailer brake control technology which has seen the Tow-Pro Elite remain Australia’s favourite and most trusted brake controller.

The Tow-Pro Elite provides users with the ability to swap between Proportional mode (inertia sensing) for highway driving conditions and User-Controlled mode, popular for off-road driving.

This is the 3rd generation of REDARC’s Tow-Pro brake controller with the original released in June 2014 and the acclaimed Tow-Pro Elite released in September 2015.

Even Smoother Braking Capabilities
Software upgrades have been included in the next generation Tow-Pro Elite which will result in smoother braking for motorists towing heavy trailers and caravans.

Compatible with All Modern Vehicles
The next-generation Tow-Pro Elite ensures compatibility with all new vehicle technology and also still features Active Calibration, works with Electric and Electric/Hydraulic trailer brakes, supports 12 or 24 volt vehicle systems and ensures an ADR approved installation. It has also been approved by AL-KO for use with their ESC and DSC systems.

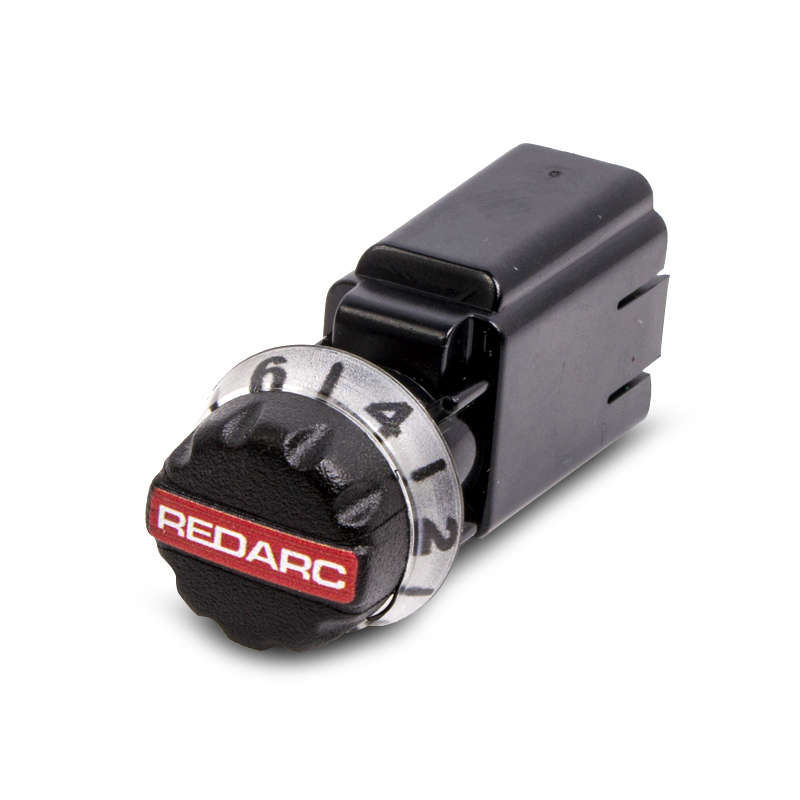

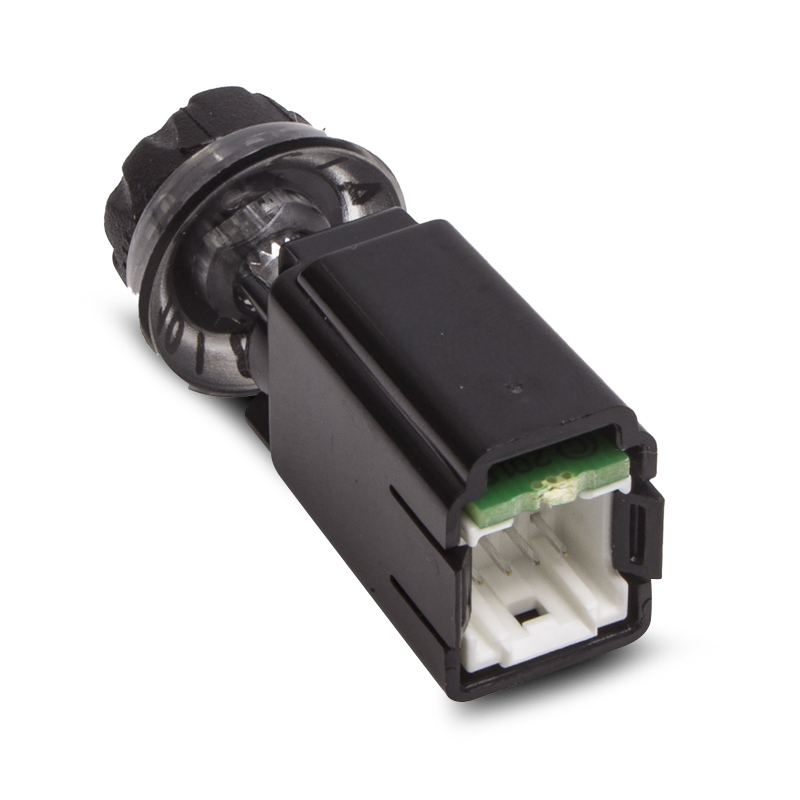

New-Look Control Knob
The main enhancements to the upgraded Tow-Pro Elite relate to the size and installation of the user interface (remote head). A change to the shape, length, size and depth of the remote head will allow a quicker and easier installation of the Tow-Pro Elite. It also ensures the remote head will fit into thicker and curved dashes found in European vehicles and trucks.

The new Tow-Pro Elite V3 is also designed to work with modern vehicles and selected TPSI switch inserts and TPW wiring kits.

Specifications

Input (Operating) Voltage: 9 - 32VDC
Input Fuse Rating: 30A (Cicruit Breaker)
Standby Current Draw: <10mA
Output System Voltage: 12VDC
Output Current Rating (Cont.): 25A
Length (mm): 85
Width (mm): 100
Height (mm): 30
Weight: 200g
