DETAILS

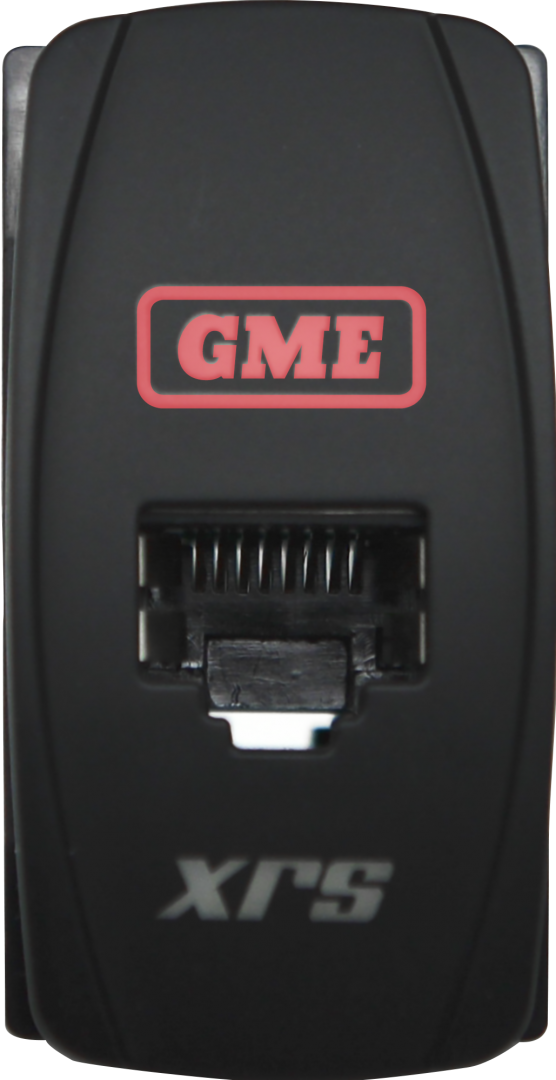

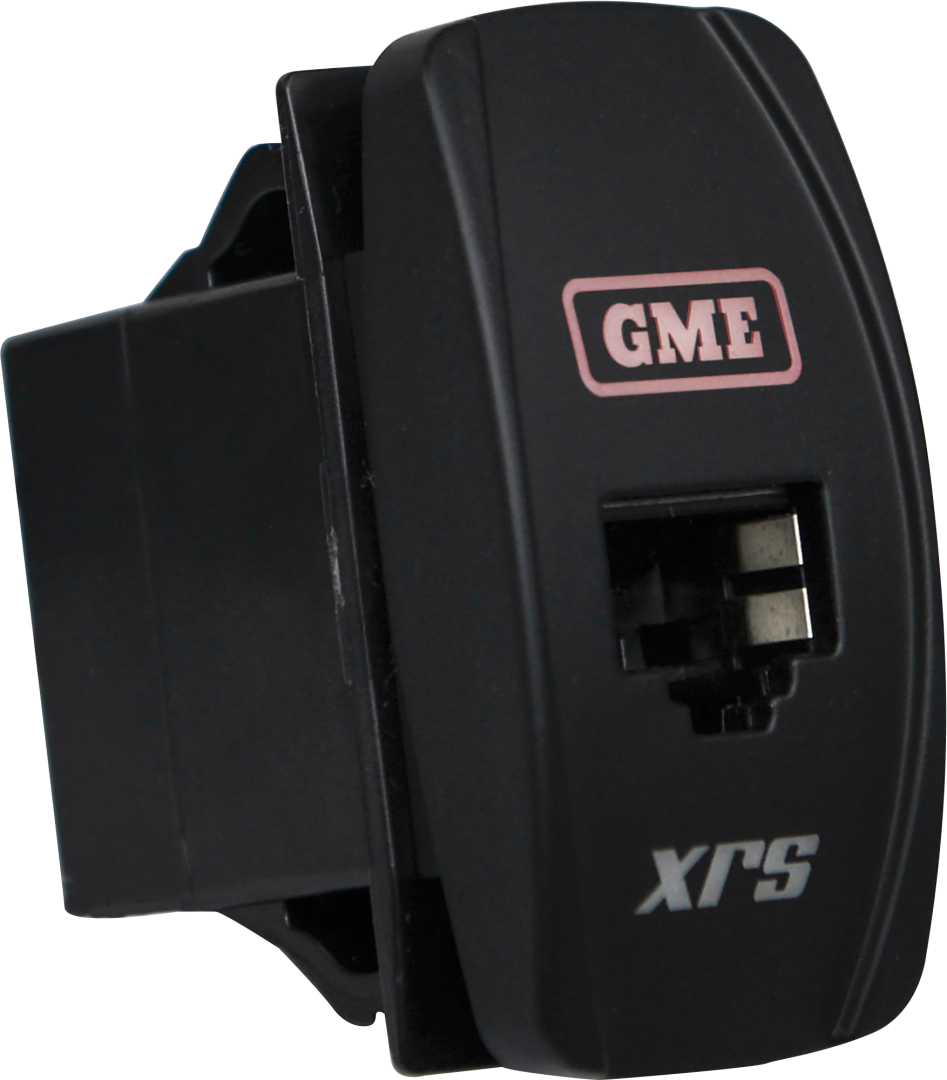

The XRS-RJ45R6 universal pass-through adaptors allow for an XRS Connect controller microphone to be integrated into a number of locations and in a variety of vehicles, providing a neat and professional finish. Ideally suited for applications including agriculture machinery, 4WD vehicles, heavy vehicles or any fitment on a flat surface.

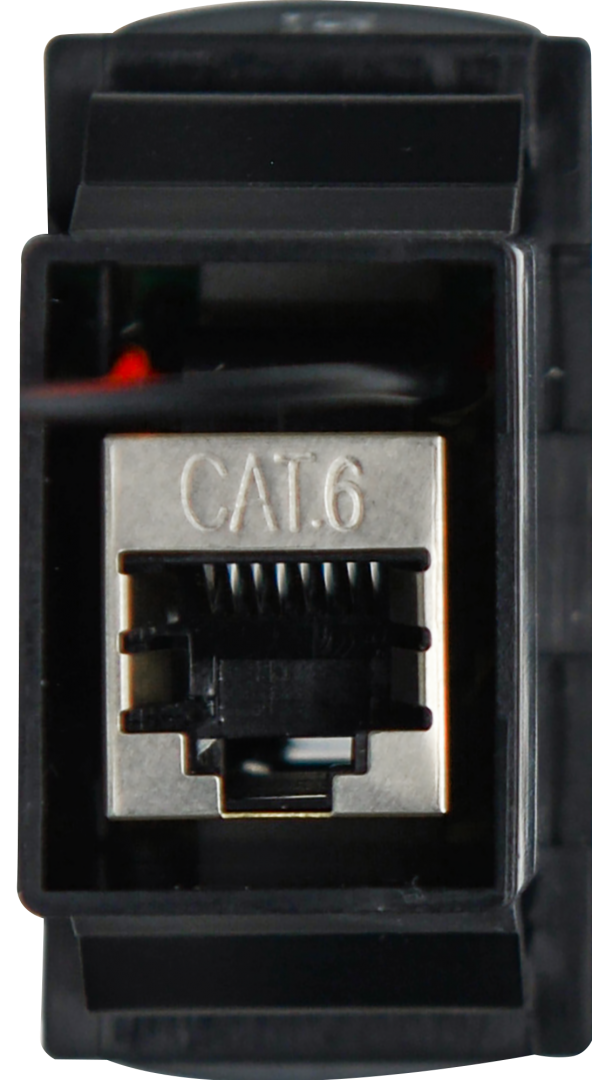

Featuring a CAT.6 compliant, fully shielded housing to minimise RF interference and dual lateral supports front and back for an extremely stable connection ensuring trouble-free communication.

The existing range of XRS-RJ45 pass-through adaptors allows for an XRS Connect controller microphone to be integrated directly into a range of blank OEM switch locations, providing a neat and professional finish.

Refer to the compatibility matrix for specific models.

Also compatible with other UHF CB radios using an 8 Pin RJ45 Connection.



Key Features

  • Suits XRS Connect UHF CB Radios
  • CAT.6 Compliant, Fully-Shielded Housing
  • Red LED Back-light
  • Ideally Suited for Universal Applications

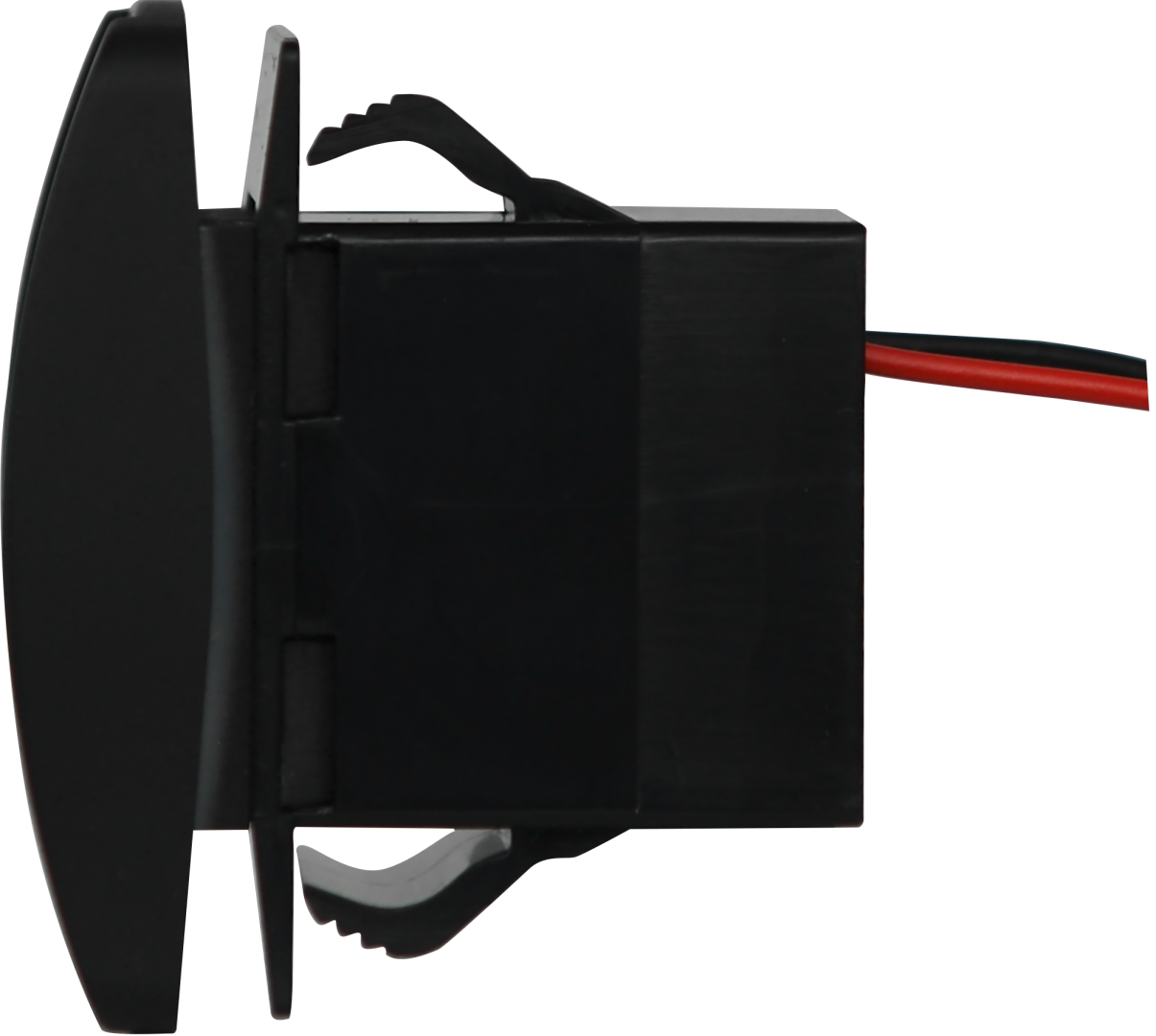

  • Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit
  • Total Mounting Depth Excluding Cable Exit: 26mm
  • Switch Cut-Out Size Required: 21mm x 37mm (with a panel thickness of 2.0mm)



In the box

  • Adaptor Only
