DETAILS


SPECIFICATIONS

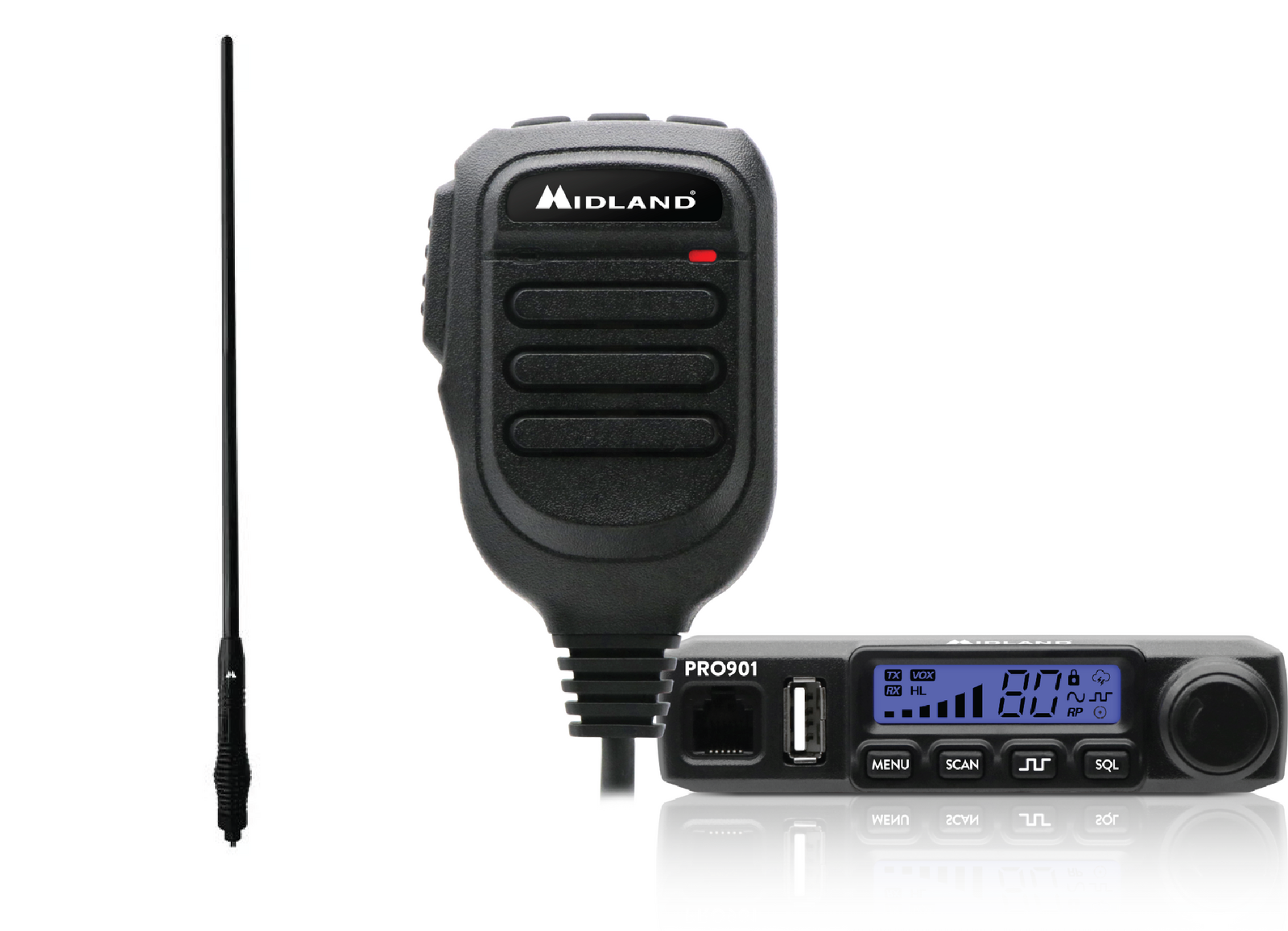

RADIO

  • Output Power: 5 Watts (@13.8V)

  • CB Channels: RX/TX: 80

  • CB Frequency Range: 476.425 ~ 477.4125MHz

  • Channel Width: 12.5kHz (narrowband)

  • Power Source: 9.5 – 16.5V

  • Microphone: MK901 w RJ45 Connector

  • Base Speaker Power: 3.7W Max (@1KHz)

  • Digital Coded Squelch (DCS): 104

  • Interference Eliminator CTCSS: 50

  • Dealer Programmable Receive CH: 19

  • USB Charging Port: Yes

  • Duplex Capability: Yes

  • Channel Memory Scan: Yes

  • LCD Display: Segment

  • Backlit LCD & Keypad: Yes

  • Flip LCD: No

  • Slide-In Mounting Cradle: Yes

  • External Speaker Jack: Yes

  • TX/RX Indicator: Yes

  • Scanning Receive Functions: Yes

  • Key Lock: Yes

  • Key Beep On/Off: Yes

  • Auto Squelch: Yes

  • Typical Range: 18km Line of Sight

  • Max absorption current in TX: 1.3A

  • Dimensions (excl. Bracket): 120W x 25H x 110D mm



ANTENNA

  • UHF RADOME ANTENNA KIT

  • 6.9dBi

  • 477MHz Pre-tuned

  • Commercial Grade LMR240 Low Loss Coax (4.5m)

  • 1.190m High

  • 54mm Ø H/Duty Barrel Spring

  • Ground Independent

  • Includes: FME to PL259
