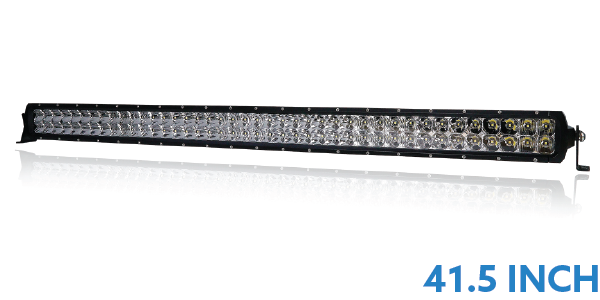

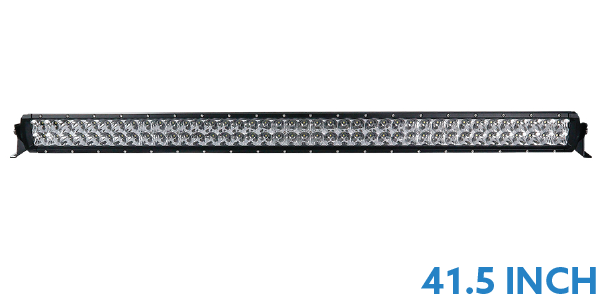

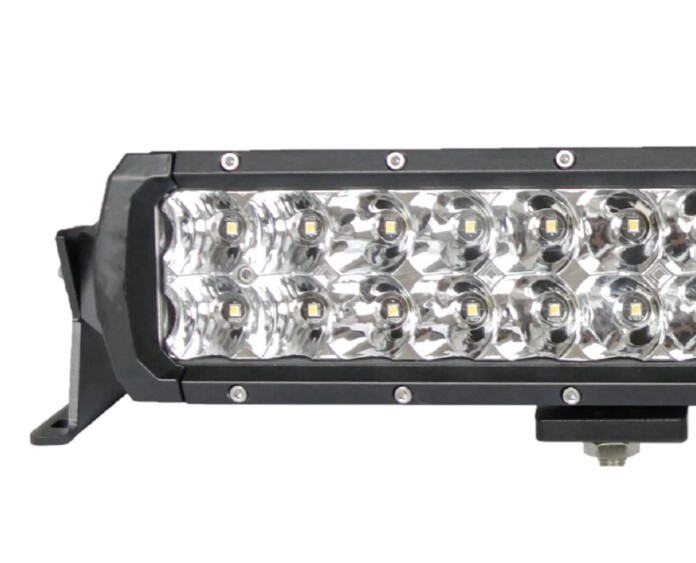

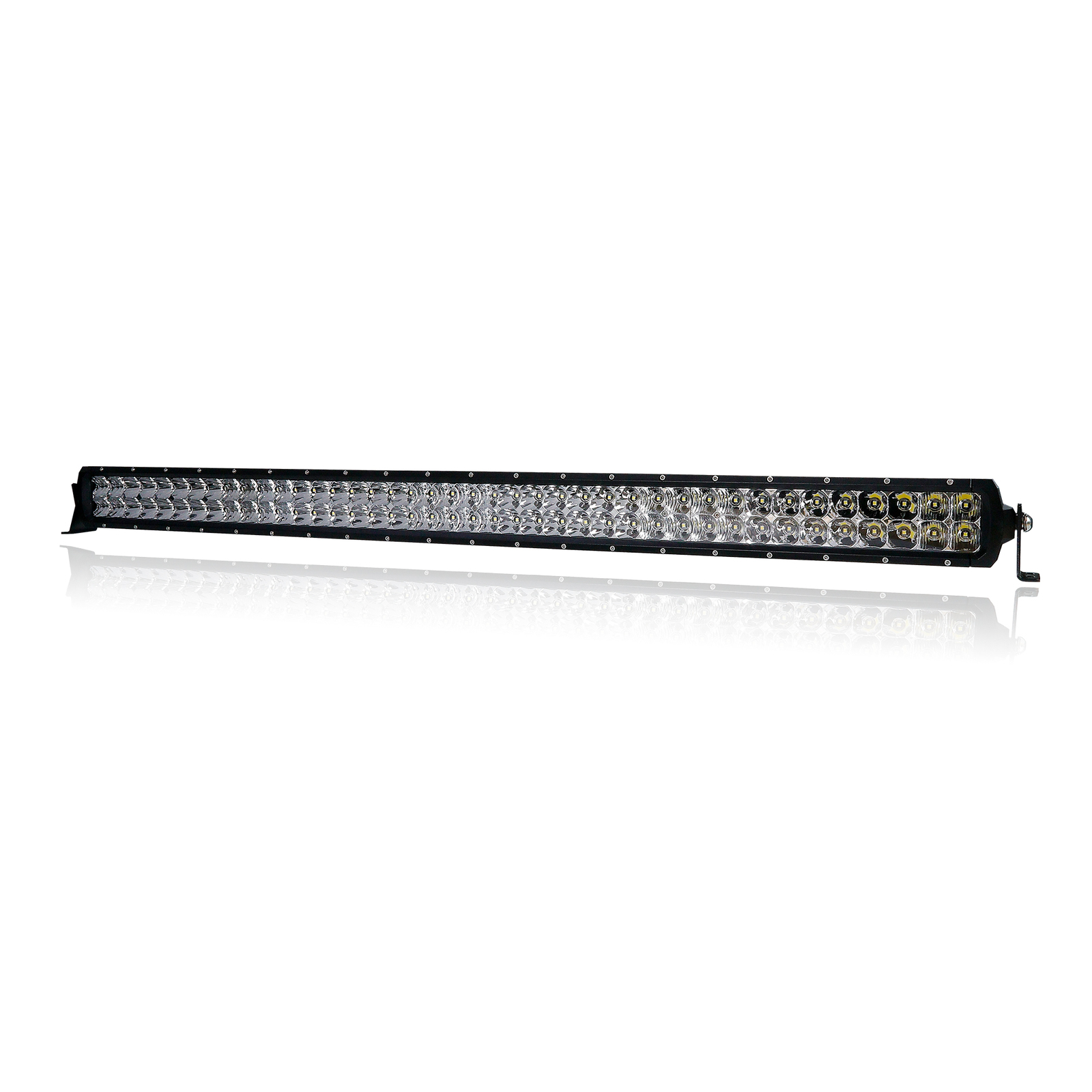

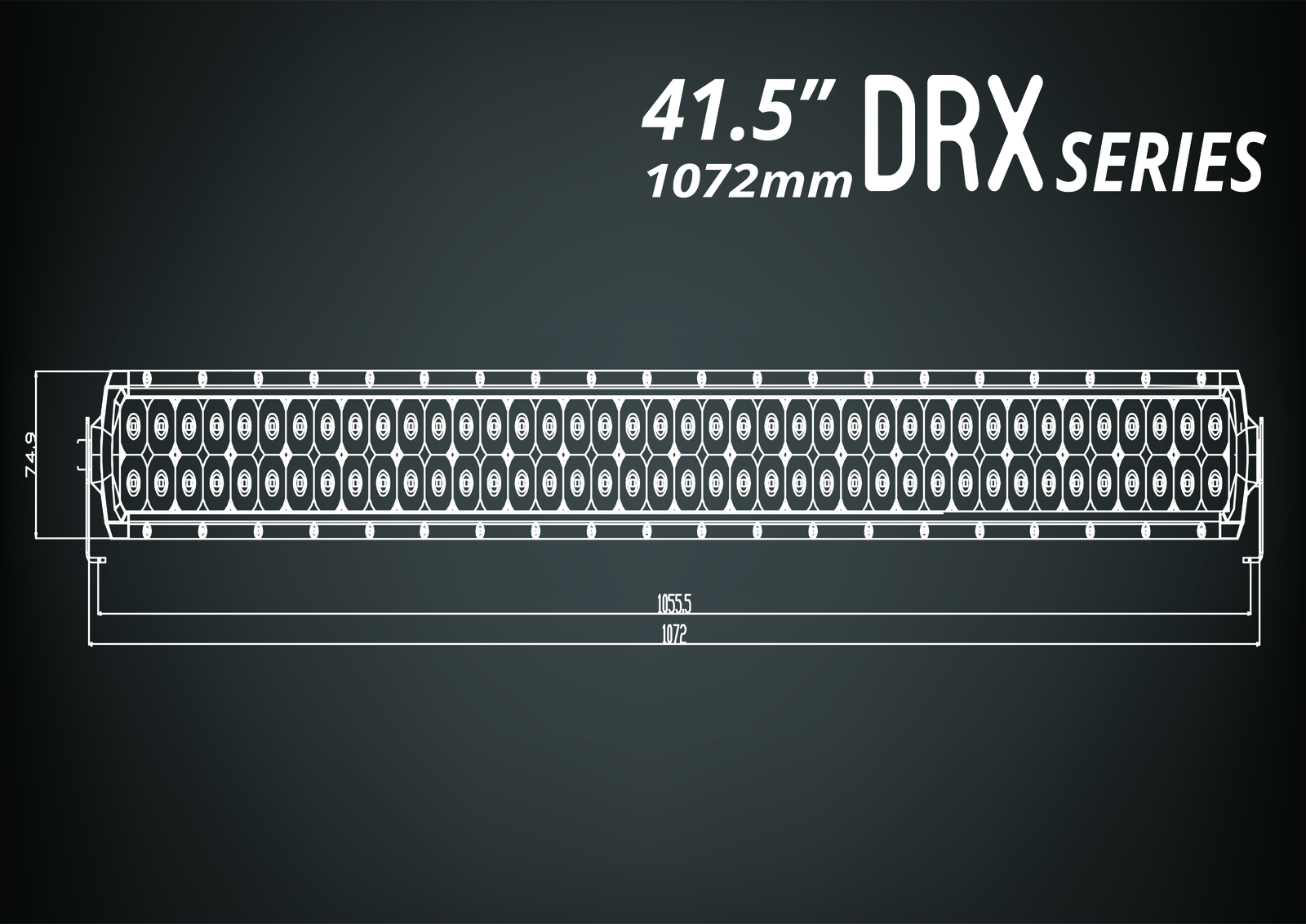

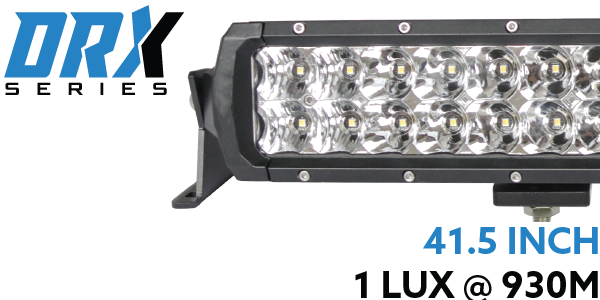

DRX SERIES 41.5" LED DUAL ROW LIGHT BAR

DETAILS

Our all new DRX SERIES 41.5" Inch is the result of our proven experience in delivering high performance LED lighting. Fitted with 80 of OSRAM’s® finest DURIS® LEDs and a combination reflector the DRX series produces a remarkable beam that pushes the flood beam out at 50° and spot beam at 5° all the way to whopping 930m @ 1 LUX

The DRX range feature our all new TruOptics beam pattern to focus the light where you need it most,

resulting in a +65% increase in lux performance in comparison to the outgoing 10 Series LED bars.

INSTANT PERFORMANCE

The DRX-41 features 80 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 930m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.

INSTANT PERFORMANCE

The DRX-41 features 80 of OSRAM’s® finest DURIS® LEDs, selected for its high output and matched optical geometry

The combination spot and flood reflector forms an astonishing beam that throwing beam wideout at 50° and spot beam punching all the way down to whopping 1 lux @ 930m

Pure White 5700K Colour temperature offers stunning clarity and definition and optimal Colour Rendering Index (CRI).

New circuit design allows 97% of input power to go directly to LEDs.

BUILT RUGGED

Diecast aluminum faceplate, extruded Aluminum heat sink
Dupont Powdercoat is UV and abrasion-resistant to ensure that our bars will never discolor.
Gore® Military breather protects against water & dust ingress
LEXAN Lens is unbreakable and optically clear
IP69K - Dust + high-pressure water-proof. No hassle car washing!

VERSATILE MOUNTING
Two separate mounting options

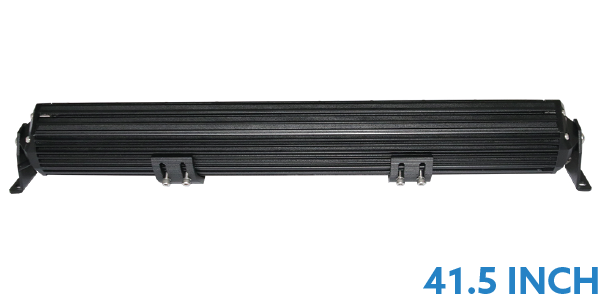

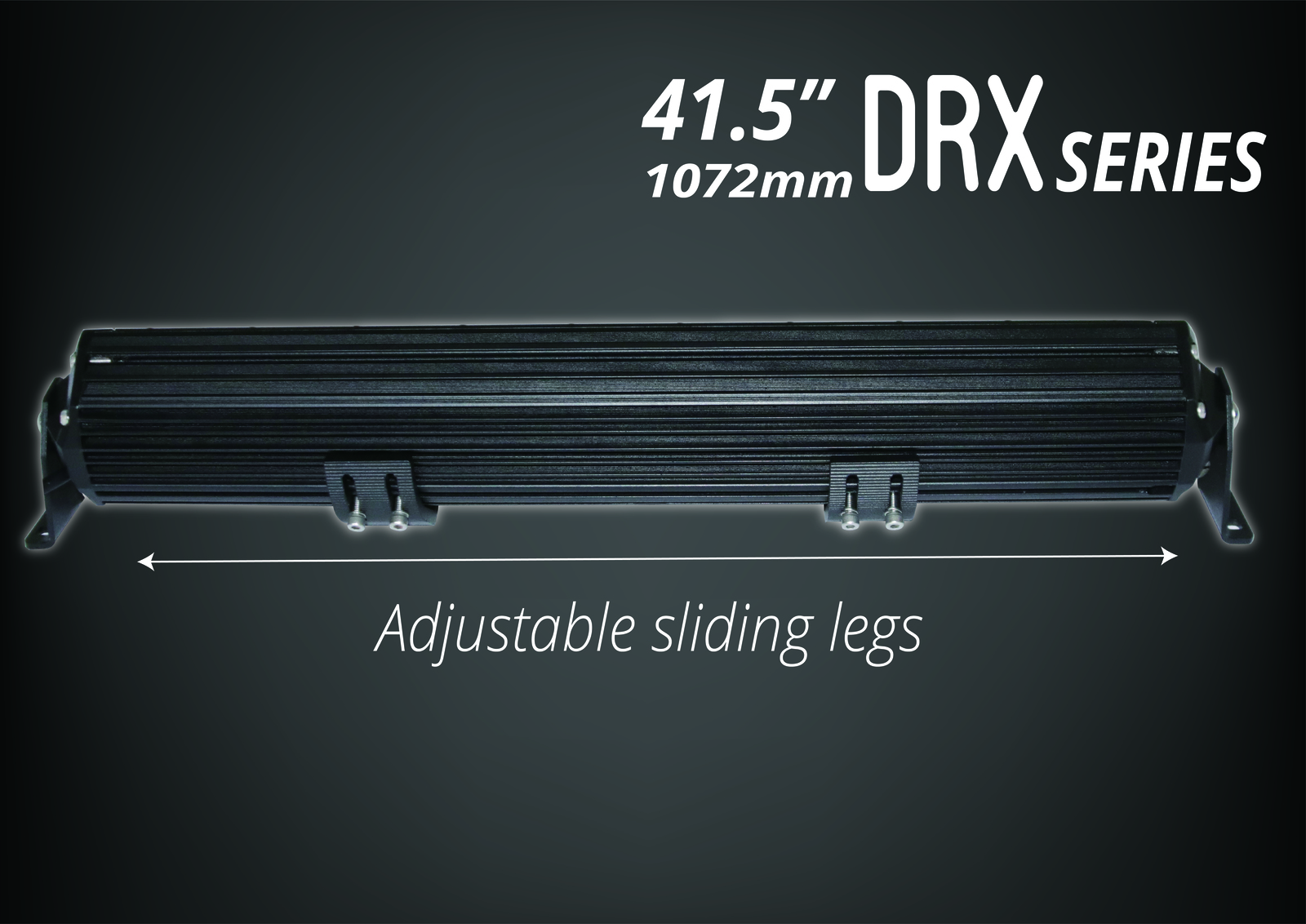

The adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. This allows for easy mounting to UHF tabs or Bullbars.

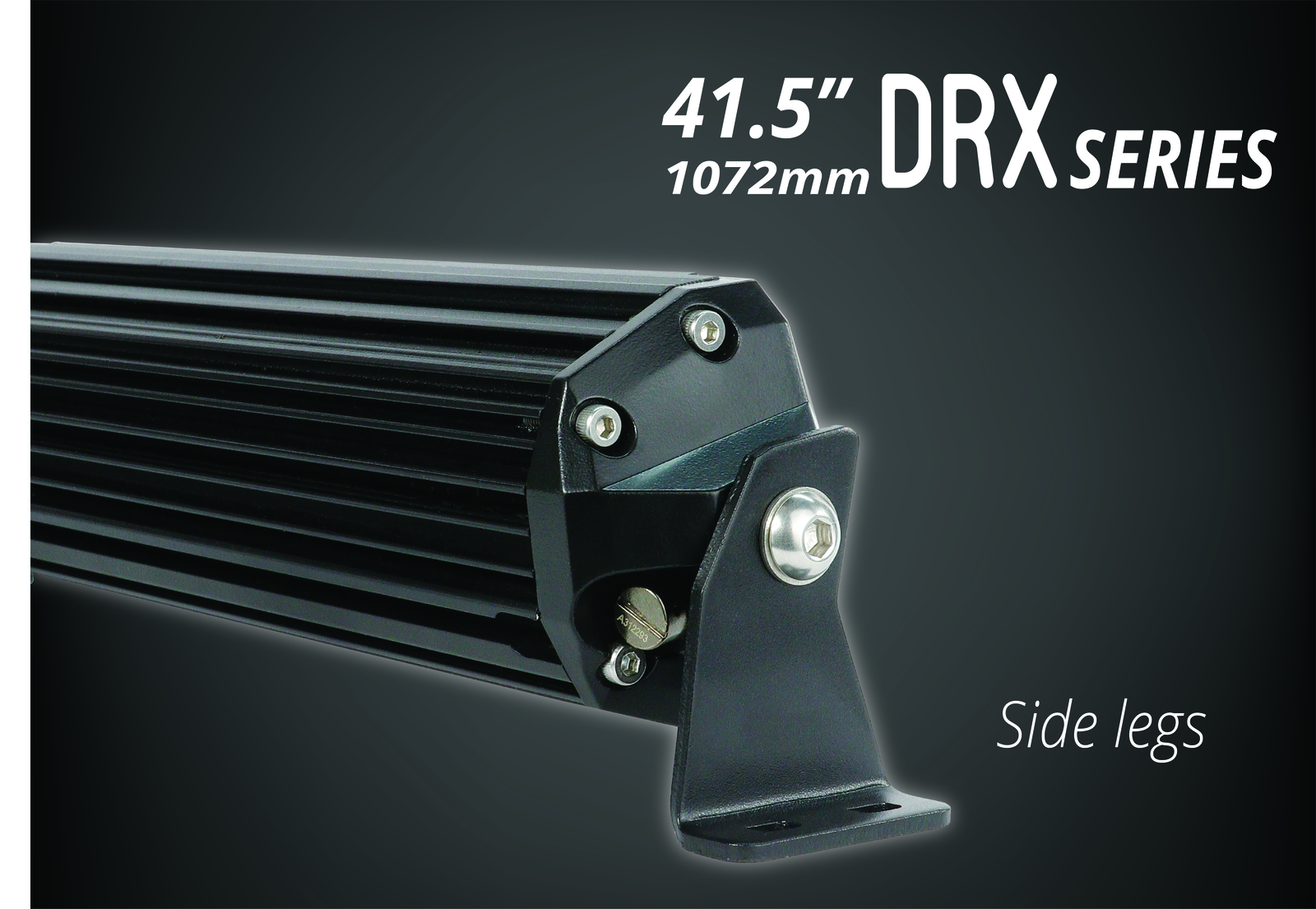

End mounts allow for 360 degrees of rotation.

VERSATILE MOUNTING
Two separate mounting options

The adjustable sliding mounts allow you to align the mount bolts to any pre-existing mounting holes. This allows for easy mounting to UHF tabs or Bullbars.
End mounts allow for 360 degrees of rotation.

CONTENTS

1 X 41.5” DRX Series Lightbar
2 x Side mount legs
2 x Adjustable bottom sliding legs

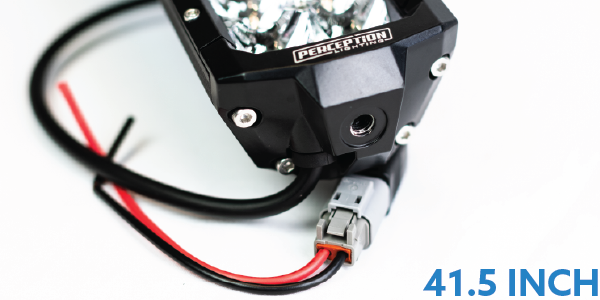

1 x Male & female deutcsh connectors

OSRAM LED TECHNOLOGY

Perception DRX series lightbars utilize a 5-watt OSRAM Duris P8 LEDs. The result is amazing distance and flood performance. These high output
5 watt LEDs are not to be confused with competitors' inferior 3-watt counterparts.

OSRAM LED TECHNOLOGY

THE PERCEPTION LIGHTING® GUARANTEE

All Perception Lighting products are manufactured using the highest quality materials. We are so confident that we stand behind this product with a comprehensive 5 Year Australian Warranty.

SPECIFICATIONS

LED POWER		400W (80 x 5W)
LED MANUFACTURER		Genuine OSRAM®

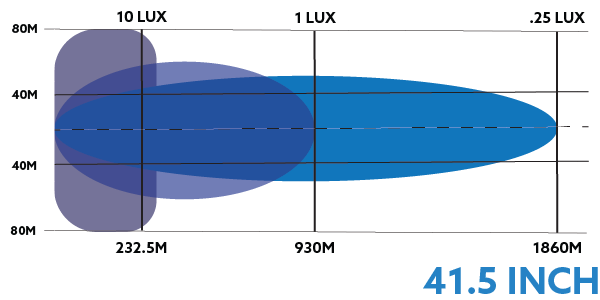

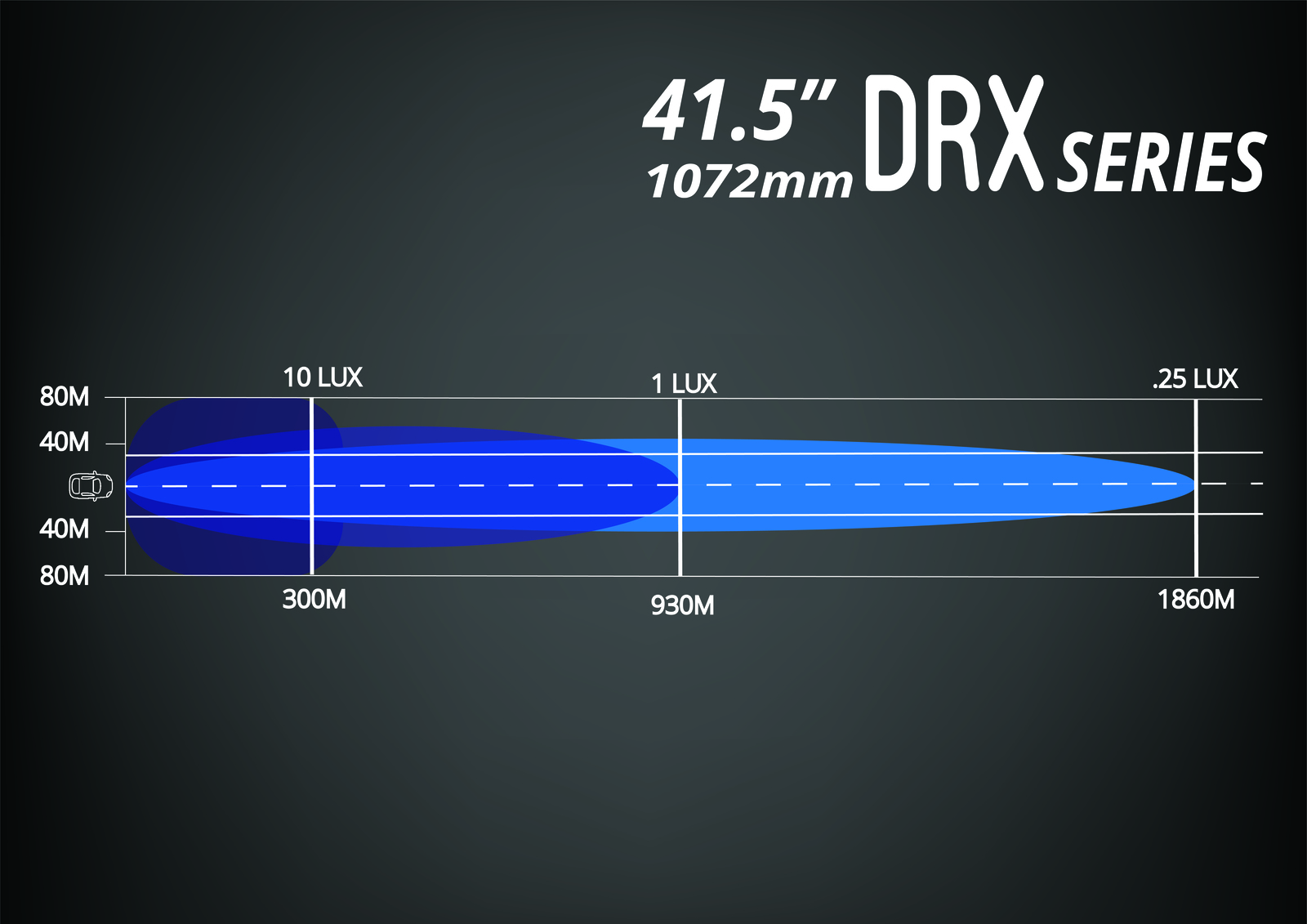

LUX		1 LUX @ 930m
BEAM DISTANCE		0.25 LUX @ 1860m
BEAM PATTERN		Combination Spot & Flood
OUTPUT		25704 Lumens
HOUSING MATERIAL		Diecast Aluminium
LENS MATERIAL		GE Lexan Polycarbonate
MOUNTING BRACKET		Side & Bottom
OPERATING VOLTAGE		10-30V DC
COLOUR TEMPERATURE		5,700K
LED LIFESPAN		50,000 hours
CERTIFICATIONS		CE, RoHS, C-Tick

SPECIFICATIONS

LED POWER		400W (80 x 5W)
LED MANUFACTURER		Genuine OSRAM®
LUX		1 LUX @ 930m
BEAM DISTANCE		0.25 LUX @ 1860m
BEAM PATTERN		Combination Spot & Flood
OUTPUT		25704 Lumens
HOUSING MATERIAL		Diecast Aluminium
LENS MATERIAL		GE Lexan Polycarbonate
MOUNTING BRACKET		Side & Bottom
OPERATING VOLTAGE		10-30V DC
COLOUR TEMPERATURE		5,700K
LED LIFESPAN		50,000 hours
CERTIFICATIONS		CE, RoHS, C-Tick
