DETAILS

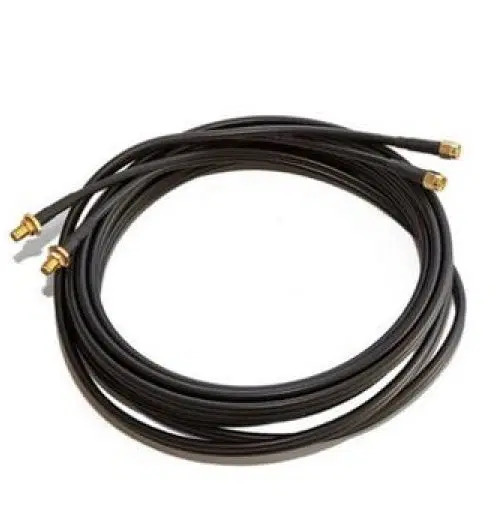

The Poynting HDF-195 10m twin Low Loss Cable SMA/m to SMA/f  is an HDF 195 twin-lead antenna cable with 10 m length and two SMA (m) to SMA (f) connectors.

Poynting HDF-195 10m twin Low Loss Cable SMA/m to SMA/f

Electrical Specifications:

  • Capacitance: 24.3 pF/m
  • Conductor: Bare copper wire
  • Shield coverage: 88 %
  • Minimum bend radius: 12.7 mm
  • Input impedance: 50 Ohm (nominal)
  • Cable loss: 0.25 dB/m at 450 MHz; 0.35 dB/m at 900 MHz; 0.53 dB/m at 2000 MHz; 0.6 dB/m at 2500 MHz
