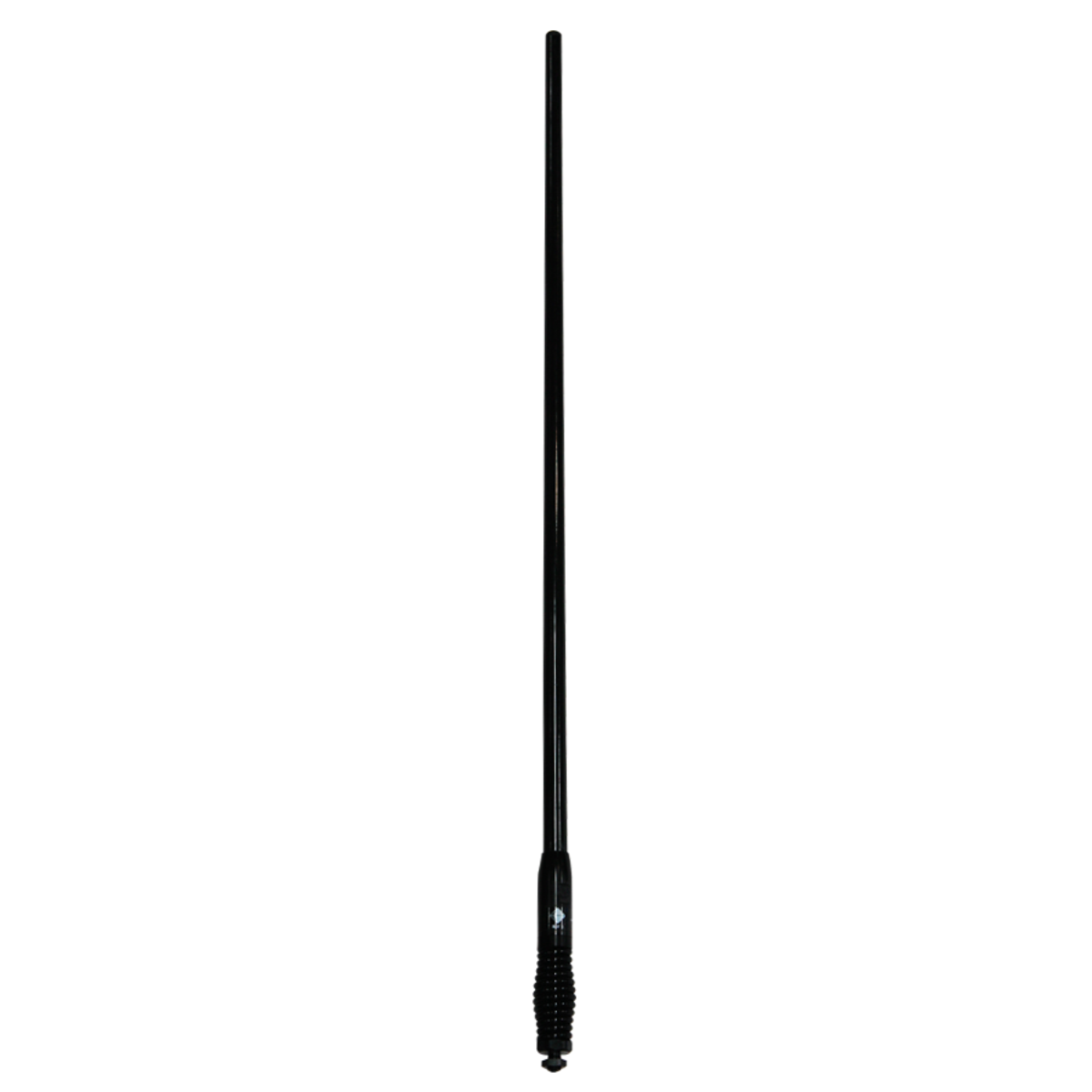

CDQ5000-B Antenna Features

CDQ5000-B Feature: The CDQ5000 employs the new Q-Fit® removable whip system for fast and simple removal when entering low height areas such as car parks or when using car washes. This antennas are supplied with a waterproof cap to ensure no water/dust ingress into the antenna connection when the whip is removed. With a heavy duty electro polished stainless steel spring, the CDQ5000 can be installed on a number of mounting brackets and are ideal for installations in commercial vehicles, four wheel drives and trucks.

Key Features

• Patented PCB based Meander™ collinear design: Offers ultimate pattern and gain stability.
• 3dBi gain: Across the full 477 MHz UHF CB band.

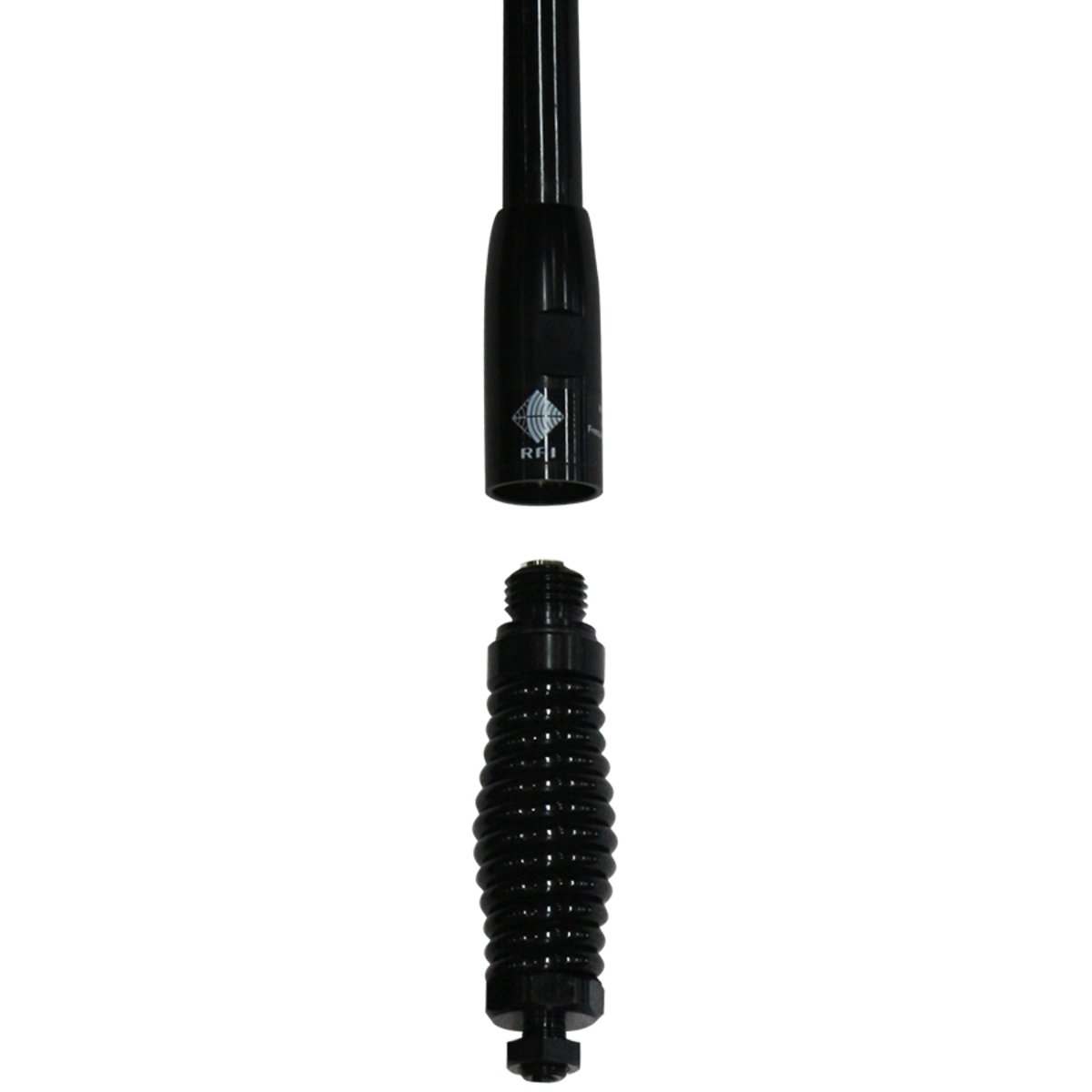

• Q-Fit™ removable whip system: Facilitates easy removal in low height environments such as multi-story car parks, car washes, or for security purposes.
• Ground Independent: Ensures stable performance without the need for a ground plane.

Specifications

• Brand: RFI
• Mounting: Spring Assembly with threaded stud & nut
• Length: 515 mm
• Frequency: 477 MHz
• Tuned Bandwidth: Full, no tuning required
• Radome Diameter: 22.5 – 18.5 mm
• VSWR: <1.5:1
• Nominal Gain: 3 dBi
• Power: 25 W
• Frequency Range: 470 - 490 MHz
• Connector: FME(F), UHF(M)
• Band: 477 MHz
• Tuning: Supplied pre-tuned
• Cable and Connector: 5m of 9006 low loss cable terminated with FME female connector and UHF adaptor
• Whip Material: PCB radiating element housed in tapered high impact fiberglass
• Packaging: Clear hanging bag
• Antenna Type: Omni
• Antenna Application: Vehicle Antenna
• Frequency Band: UHF 380-520 MHz
• Antenna Configuration: SISO
