DETAILS

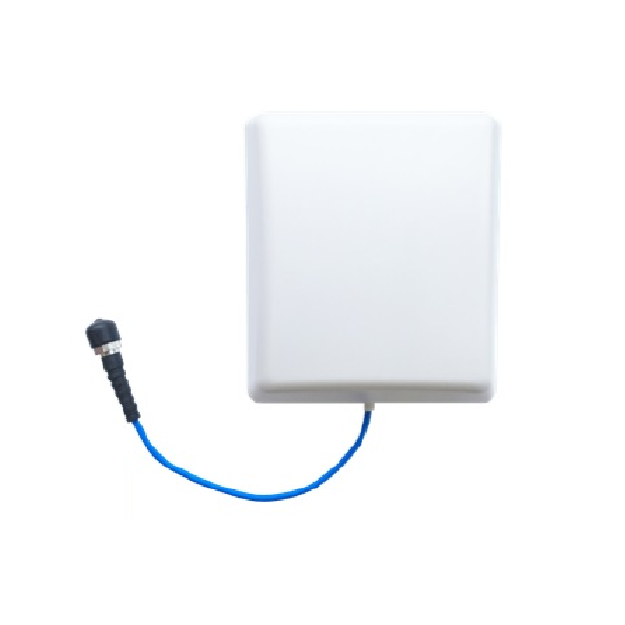

The Blackhawk Antennas Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of what frequency they operate on.

Offering a 7dB gain this antenna is suitable as an indoor antenna or panel antenna, that can be mounted on a wall for repeater applications.

  • Provides a 7dbi gain for 698-960 MHz
  • Provides a 8dbi gain for 1710-2600 MHz

Provides a 7dbi gain for 698-960 MHz

Provides a 8dbi gain for 1710-2600 MHz



The Blackhawk Indoor Wall Mount Antenna is designed to operate with all mobile carriers in mind, regardless of what frequency they operate on.



Offering a 7dB gain this antenna is suitable as an indoor antenna or panel antenna, that can be mounted on a wall for repeater applications.



Main Technical Specifications:



Model ANT-BH-WAL-698/2700-65
Frequency range 698~960 MHz / 1710~2600MHz
VSWR <1.5
Input impendance 50Ω
Gain 7 / 8dBi
Polarization type Line polarization
E-plane beamwidth 65°
H-plane beamwidth 90°
F/B ratio ≥23dB
Max power 50W
Lightning protection DC ground
Connector Type N female
RG58/U cable L=300mm
Weight 600g
Dimensions 180x158x60 mm
Radome material UV-Resistance ABS
Radome color White
Working temperature -40℃~+60℃
